Requirements (self-hosted Nest)

This page describes the network architecture and connectivity requirements when self-hosting Nest.

Architecture

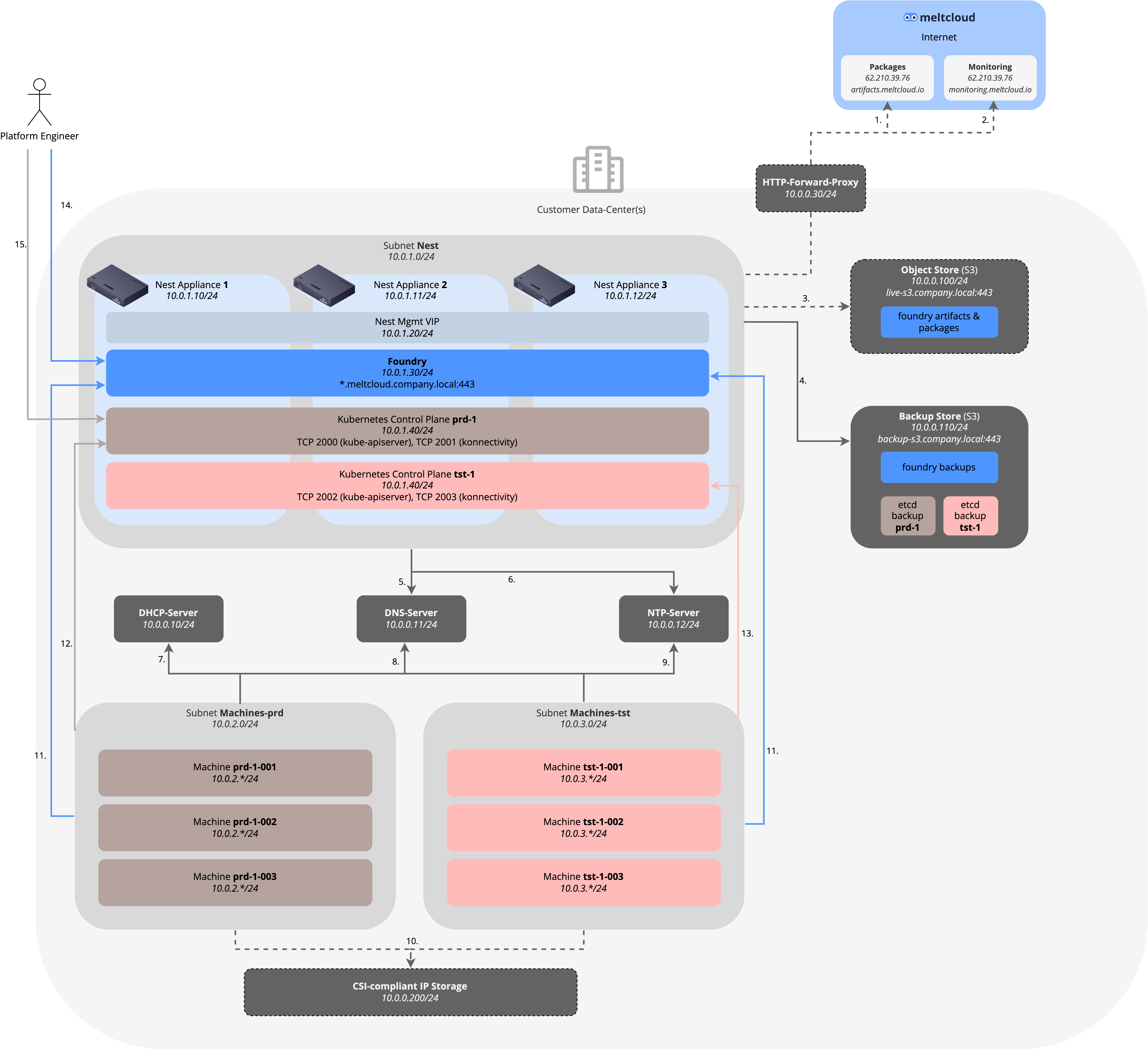

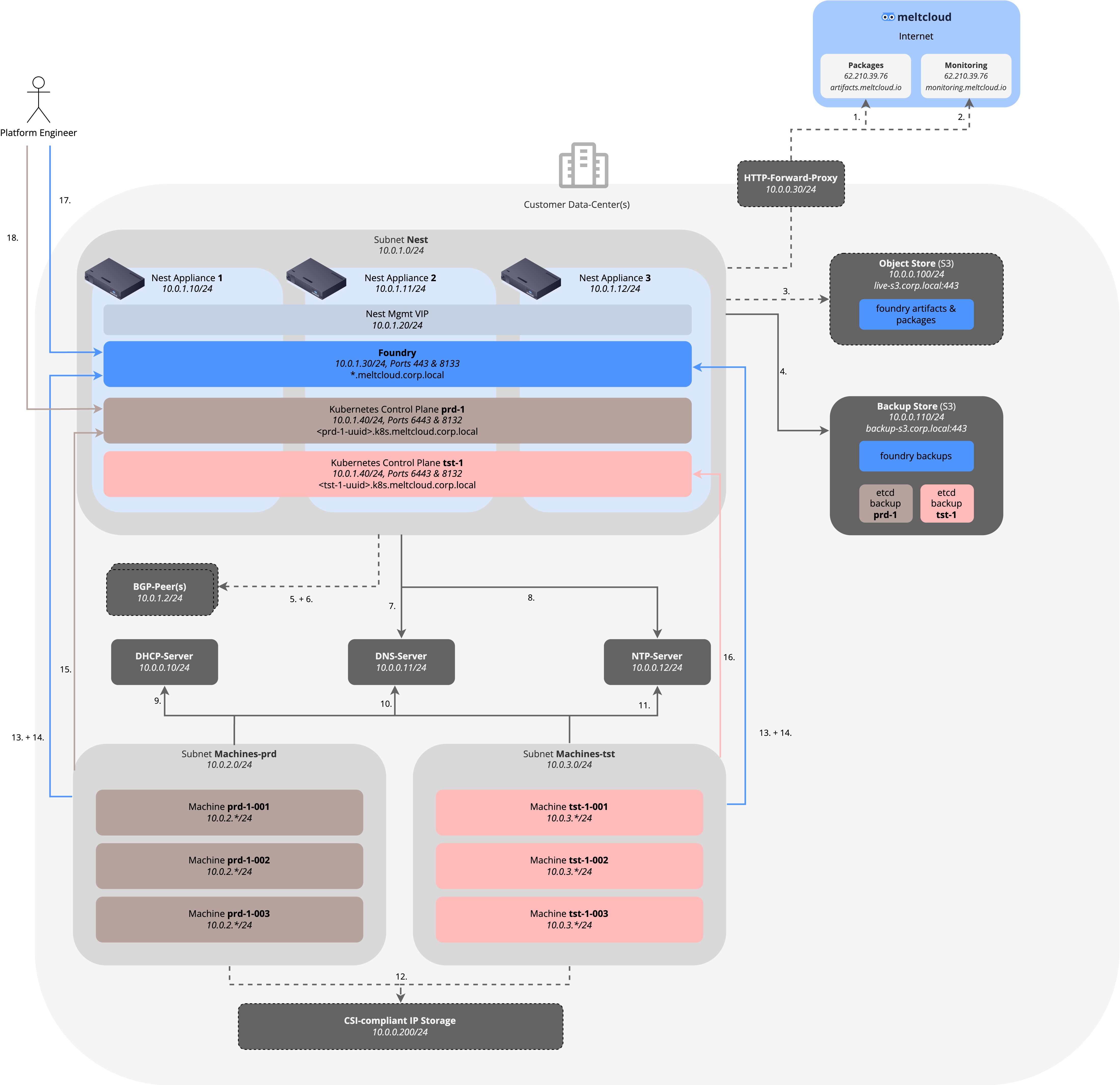

The following image depicts the involved components and their connectivity flows. To illustrate it with examples, we have chosen the 10.0.0.0/8 RFC1918 range and the domain corp.local as an example – please adapt it to your setup.

Requirements (self-hosted)

Customer-provided Services

As shown in the picture above, meltcloud requires the following services to be provided by the customer:

DHCP-Server: to provide IP addresses, routes, DNS & NTP servers for all Machines. See Details below for the required fields. Nest itself doesn't use DHCP and is statically addressed.
DNS: to register the internal hostnames (*.meltcloud.corp.local) and to resolve all internal and external destinations
NTP-Server: to synchronize time of Machines. Strongly recommended to avoid issues with TLS client certificates. If none provided, Machines will fall back to *.flatcar.pool.ntp.org.
BGP Peer: only when Nest is installed with BGP announcements instead of L2. A switch or router configured to accept a BGP session from each Nest instance, so that the Nest can announce its VIPs.
Object Store (S3): optional, to store Foundry artifacts and packages (to avoid storing them on the Nest appliance)
Backup Store (S3): to store Foundry and control plane backups for disaster recovery purposes
Egress Internet Connectivity (unless Airgapped): Connectivity to artifacts.meltcloud.io or monitoring.meltcloud.io. An HTTP forward proxy can be used.

Port Matrix

The following table shows all required connectivity according to the image above:

ID	Source	Destination	Ports/Protocols	Reason	Required	Comment
1	Subnet Nest (10.0.1.0/24)	artifacts.meltcloud.io (62.10.39.76)	443/tcp (HTTPS)	To download package updates	Yes, unless Airgapped	Dedicated IP (no CDN). HTTP proxy supported.
2	Subnet Nest (10.0.1.0/24)	monitoring.meltcloud.io (62.10.39.76)	443/tcp (HTTPS)	To push metrics data for remote support	Yes, unless Airgapped	Dedicated IP (no CDN). HTTP proxy supported.
3	Subnet Nest (10.0.1.0/24)	live-s3.corp.local (10.0.0.100)	443/tcp (HTTPS)	To store Foundry artifacts on packages	No	To avoid storing large files on Nest. Recommended for bigger setups/when S3 is available in-house.
4	Subnet Nest (10.0.1.0/24)	backup-s3.corp.local (10.0.0.110)	443/tcp (HTTPS)	To store Foundry and control plane backups for DR	Yes	Can also be consumed as an additional service from meltcloud (if not available in-house)
5	Subnet Nest (10.0.1.0/24)	BGP-Peer(s) (10.0.0.2, 10.0.1.2)	179/tcp (BGP)	To announce the VIPs to the network	Only with BGP	Not required with L2 announcements. The peer is usually the switch the Nest is attached to
6	Subnet Nest (10.0.1.0/24)	BGP-Peer(s) (10.0.0.2, 10.0.1.2)	3784/udp (BFD)	To detect a failed peer in under a second	Only with BFD	Optional per peer. Without it a dead peer takes the BGP hold time, 90s by default
7	Subnet Nest (10.0.1.0/24)	DNS-Server (10.0.0.11)	53/udp/tcp (DNS)	To resolve hostnames	Yes
8	Subnet Nest (10.0.1.0/24)	NTP-Server (10.0.0.12)	123/udp (NTP)	To synchronize time	No	If unset, falls back to `*.flatcar.pool.ntp.org`
9	Subnets Machines-* (10.0.2-3.0/24)	DHCP-Server (10.0.0.10)	67/udp (DHCP)	To retrieve IPs, routes, DNS & NTP server	Yes
10	Subnets Machines-* (10.0.2-3.0/24)	DNS-Server (10.0.0.11)	53/udp/tcp (DNS)	To resolve hostnames	Yes
11	Subnets Machines-* (10.0.2-3.0/24)	NTP-Server (10.0.0.12)	123/udp (NTP)	To synchronize time	No	If unset, falls back to `*.flatcar.pool.ntp.org`
12	Subnets Machines-* (10.0.2-3.0/24)	CSI-compliant IP Storage (10.0.0.200/24)	NFS, iSCSI, ...	For persistent volumes	No	Depends on vendor/technology
13	Subnets Machines-* (10.0.2-3.0/24)	Foundry, `*.meltcloud.corp.local` (10.0.1.30)	443/tcp (HTTPS)	Agent <> Foundry interaction, downloading of packages	Yes	Uses TLS Client Certificates
14	Subnets Machines-* (10.0.2-3.0/24)	Foundry, `agent.meltcloud.corp.local` (10.0.1.30)	8133/tcp (HTTPS)	Tunnelled TLS traffic for in-cluster Pod -> kube-apiserver traffic (as the SNI listener cannot be used for this traffic)	Yes	Same IP as ID 12, different port
15	Subnet Machines-prd (10.0.2.0/24)	Kubernetes Control Plane prd-1, `<prd-1-uuid>.k8s.meltcloud.corp.local` (10.0.1.40)	6443/tcp, 8132/tcp (HTTPS)	Kubelet -> kube-apiserver and konnectivity traffic	Yes	Uses TLS Client Certificates. Every Cluster uses these same ports and is told apart by its hostname (SNI)
16	Subnet Machines-tst (10.0.3.0/24)	Kubernetes Control Plane tst-1, `<tst-1-uuid>.k8s.meltcloud.corp.local` (10.0.1.40)	6443/tcp, 8132/tcp (HTTPS)	Kubelet -> kube-apiserver and konnectivity traffic	Yes	Uses TLS Client Certificates. Every Cluster uses these same ports and is told apart by its hostname (SNI)
17	platform engineer	Foundry, `*.meltcloud.corp.local` (10.0.1.30)	443/tcp (HTTPS)	web or API interaction	Yes	Allow Websockets if going over a HTTP proxy
18	platform engineer	Kubernetes Control Plane prd-1, `<prd-1-uuid>.k8s.meltcloud.corp.local` (10.0.1.40)	6443/tcp (HTTPS)	`kubectl` interaction	No	The admin kubeconfig uses TLS Client Certificates, the user kubeconfig authenticates via OIDC

DNS Entries & TLS Certificates

The following hostnames must resolve to the IPs below. Foundry also requires TLS server certificates for some of its hostnames; those certificates have to be provided (i.e. from a Customer or Public CA).

For the Foundry hostnames we recommend using wildcards (for DNS and TLS Certificates). If that is not possible, you can also create the specific entries as found in the list below (except for the Cluster hostnames, where a wildcard DNS entry is required).

Hostname	Resolves to	Used for	Recommended DNS Entry	Recommended TLS Certificate	Certificate Issued By
`app.meltcloud.corp.local`	Foundry (10.0.1.30)	Web browser and Terraform access	`*.meltcloud.corp.local`	SAN `*.meltcloud.corp.local`	Customer or Public CA
`agent.meltcloud.corp.local`	Foundry (10.0.1.30)	Agent -> API access, Pod tunnel on 8133	`*.meltcloud.corp.local`	SAN `*.meltcloud.corp.local`	Customer or Public CA
`pkg.meltcloud.corp.local`	Foundry (10.0.1.30)	Reading local packages for Machines	`*.meltcloud.corp.local`	SAN `*.meltcloud.corp.local`	Customer or Public CA
`pkg-push.meltcloud.corp.local`	Foundry (10.0.1.30)	Pushing local packages for Machines	`*.meltcloud.corp.local`	SAN `*.meltcloud.corp.local`	Customer or Public CA
`s3.meltcloud.corp.local`	Foundry (10.0.1.30)	S3 API, only when using the built-in object store	`*.meltcloud.corp.local`	SAN `*.meltcloud.corp.local`	Customer or Public CA
`<prd-1-uuid>.k8s.meltcloud.corp.local`	Hosted Control Planes (10.0.1.40)	kube-apiserver and konnectivity	`*.k8s.meltcloud.corp.local` (Wildcard required)	n/a	Auto-generated

Machine Network Configuration via DHCP

Machines require DHCP to configure IP addresses and environment-specific settings like routes, DNS and NTP servers.

Through DHCP, the following parameters must be provided:

IP address and subnet: primary network identity of the host
Default gateway and static routes: customized routing for specific environments
DNS servers and search domains: name resolution configuration
NTP servers: time synchronization sources

Example Kea DHCP configuration

json

{
  "Dhcp4": {
    "subnet4": [
      {
        "subnet": "10.10.10.0/24",
        "pools": [
          { "pool": "10.10.10.100 - 10.10.10.200" }
        ],
        "option-data": [
          { "name": "routers", "data": "10.10.10.1" }, // sets default gw / route
          { "name": "domain-name", "data": "lab.example.com" }, // dns search domain
          { "name": "domain-name-servers", "data": "10.10.10.53, 10.10.10.54" }, // dns servers
          { "name": "ntp-servers", "data": "10.10.10.60" }, //  ntp source
        ]
      }
    ]
  }
}
