Install Nest

INFO

To learn about Nest and its components, see Nest.

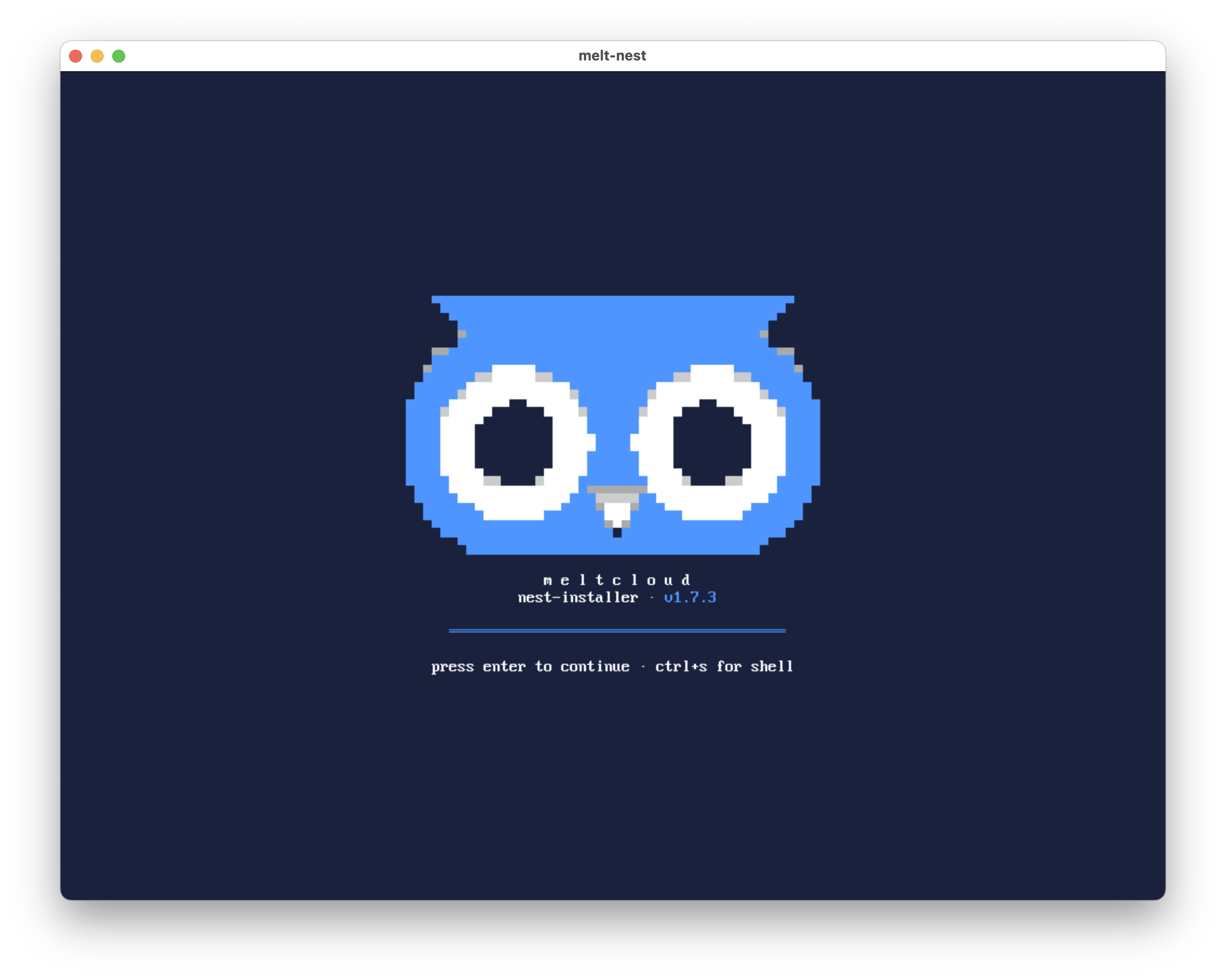

The Nest installer is a terminal-based wizard that guides you through configuring and installing the management appliance. It runs in 7 steps.

Prerequisites

• A physical or virtual machine with at least 200 GB disk space
• Boot the machine from the Nest installer ISO
• Have the following information ready:
  • 3 free IP addresses in your network for the load balancer VIPs
  • A domain (or wildcard domain) resolving to the Foundry VIP
  • For airgapped installations using your own registry, reach out to us for options.

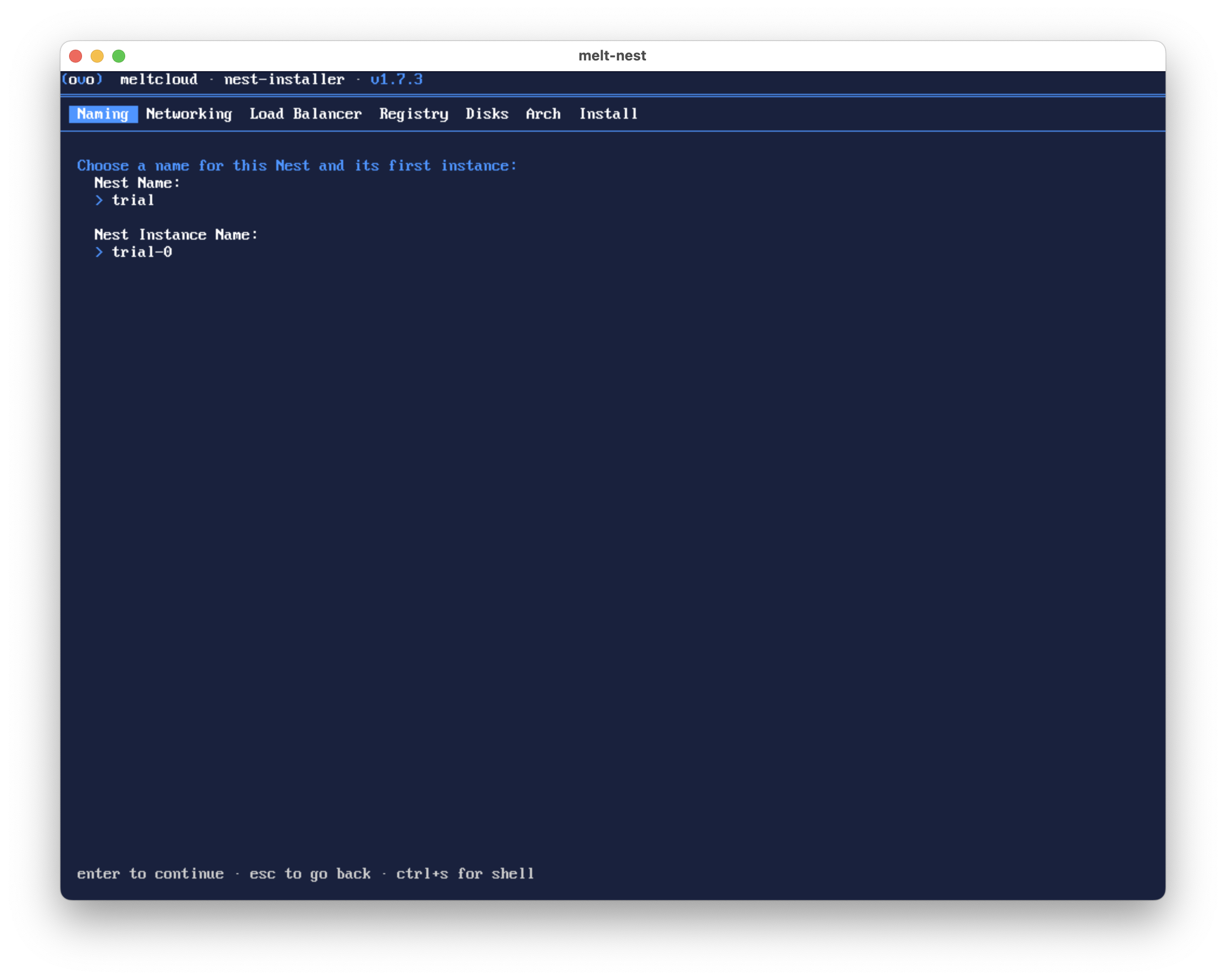

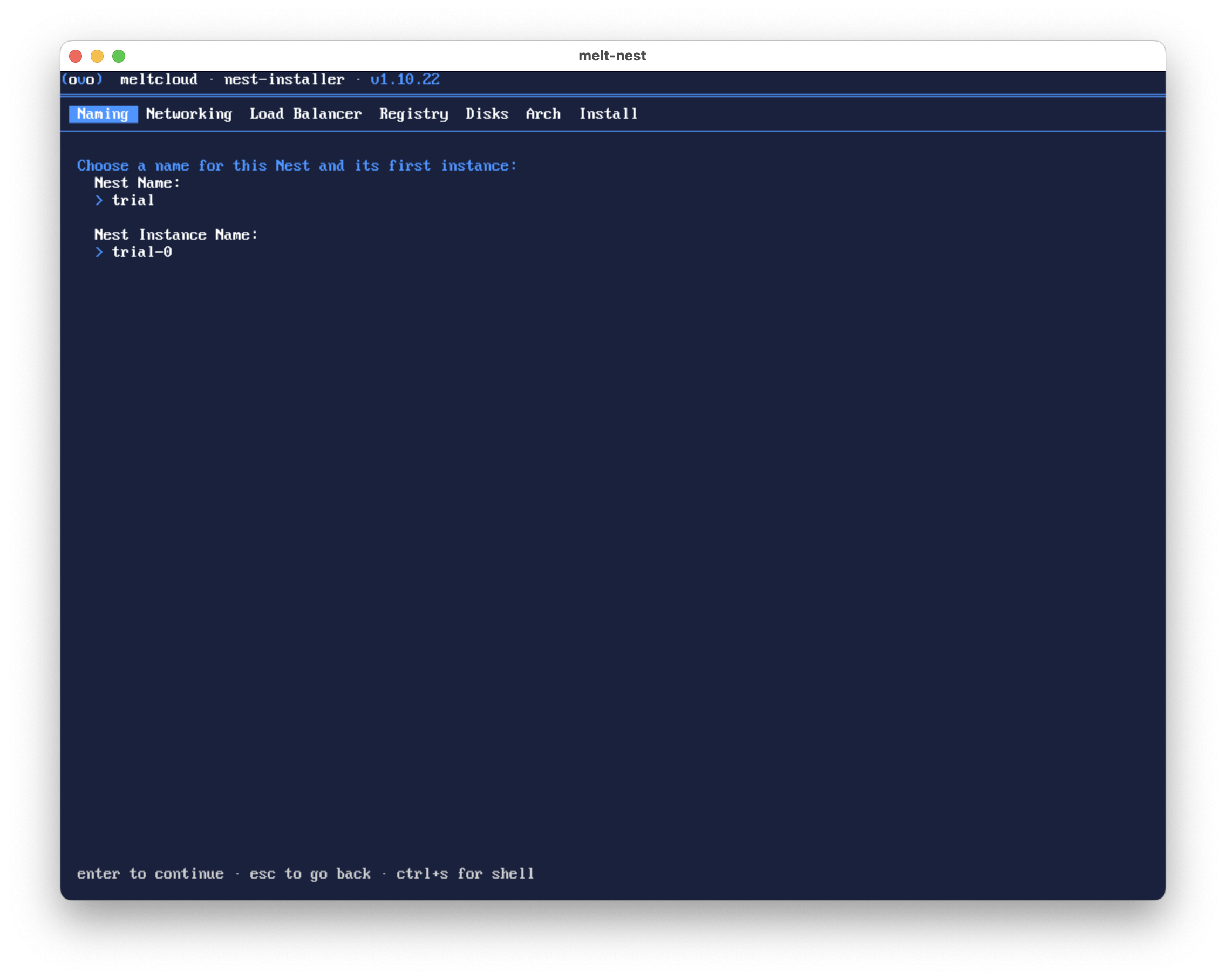

1. Naming

Set the Nest cluster name and the name for this specific instance.

TIP

These names are informational only and do not affect the installation.

Property	Description	Default	Required
Nest Name	Identifier for the Nest cluster	trial	Yes
Nest Instance Name	Identifier for this specific Nest host	trial-0	Yes

2. Host Networking

Configure how the Nest appliance connects to your network.

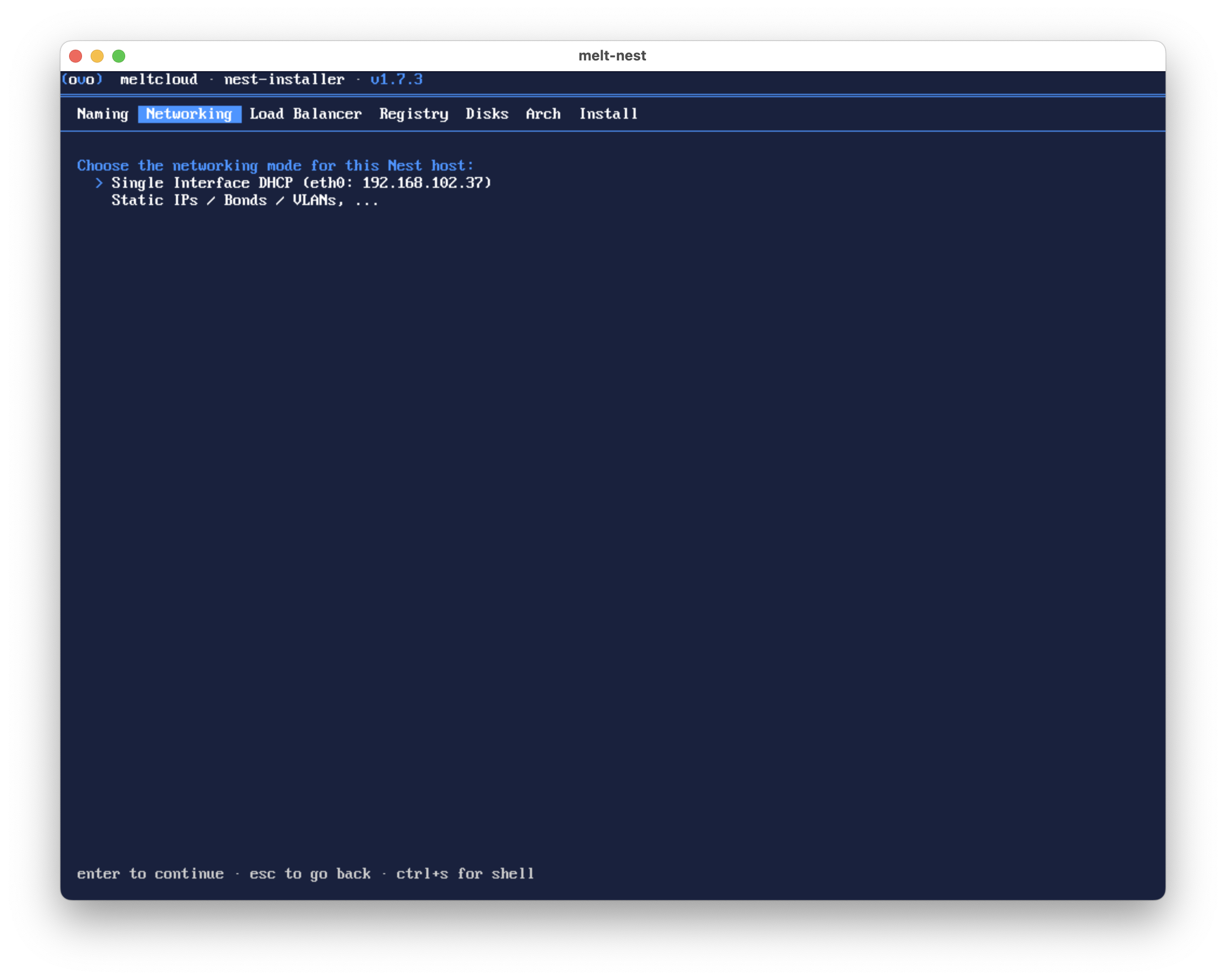

Network Mode

Choose between simple (DHCP) or advanced (static IP) networking.

WARNING

Nest requires IP addresses to be fixed. DHCP should only be used for trials, where most virtualization platforms (tart, UTM, QEMU, libvirt) treat DHCP leases as static enough for playing around. Hyper-V and VMware Workstation do not, so use static IPs with those.

Option	Description
Single Interface DHCP	Uses DHCP on a single interface. Only suitable for trials (see note below).

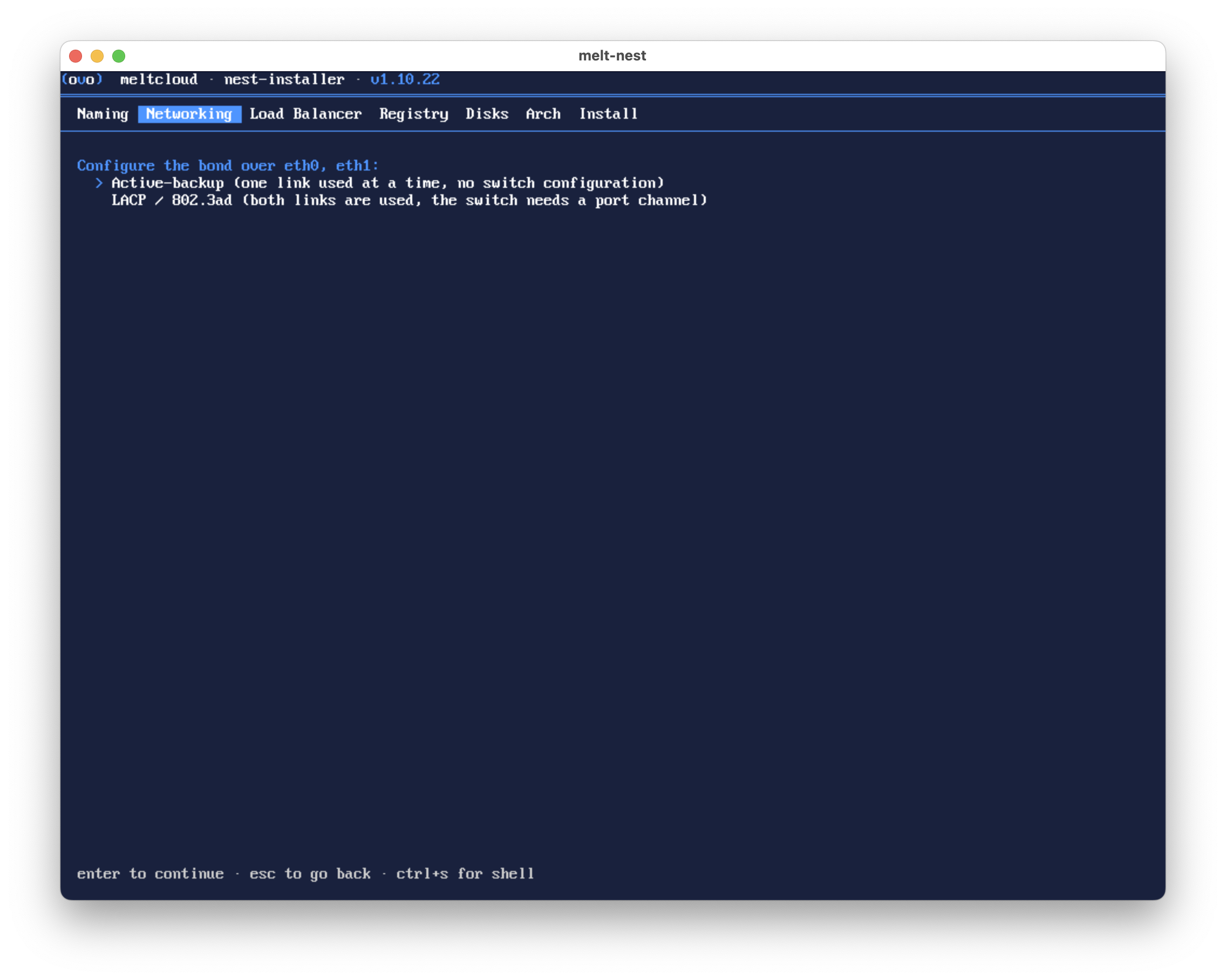

Static IPs / Bonds / VLANs	Manual IP configuration. Required for production environments.

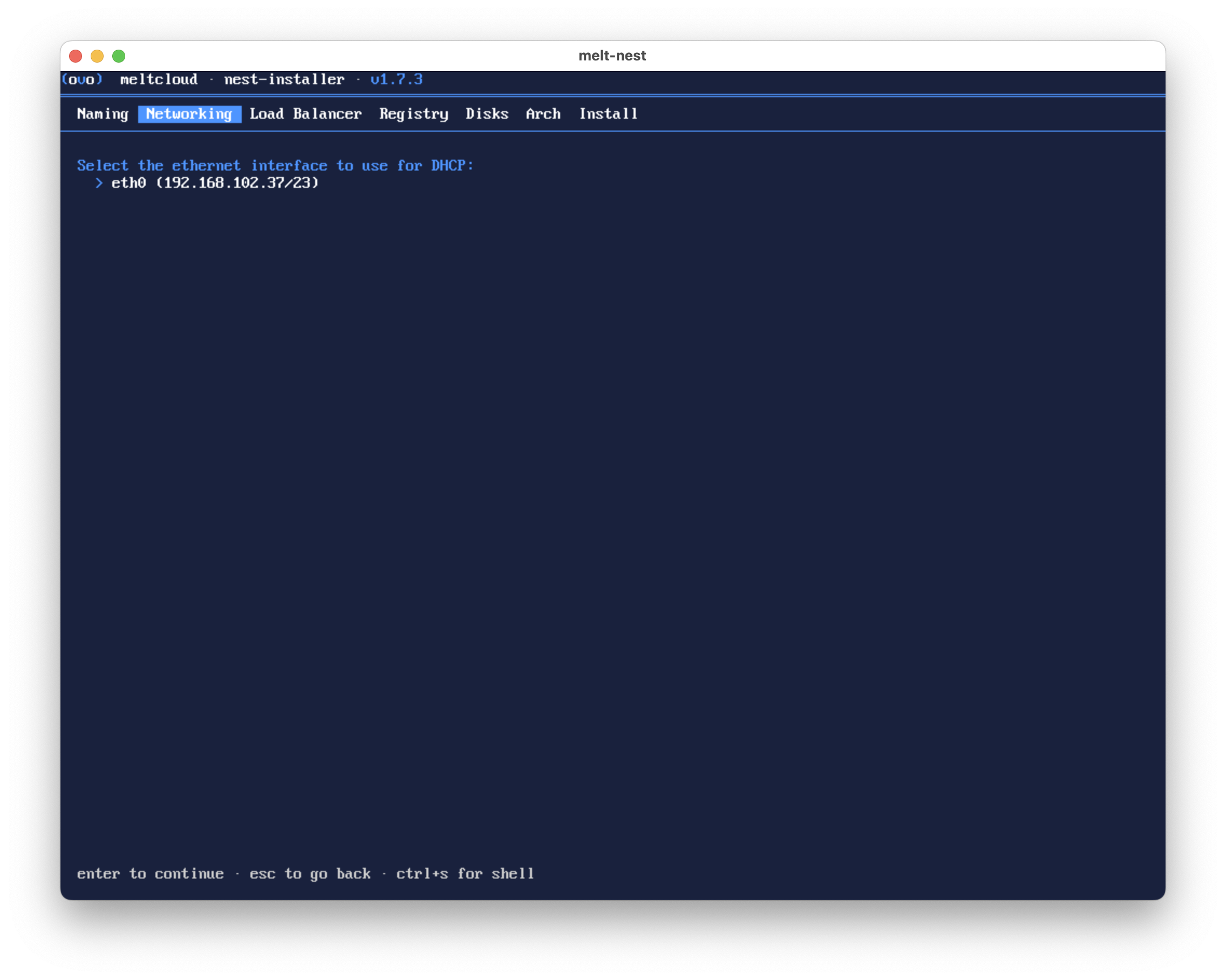

DHCP: Interface Selection

If DHCP is selected, choose which network interface to use.

The installer lists all available network interfaces with their current IP addresses (if any).

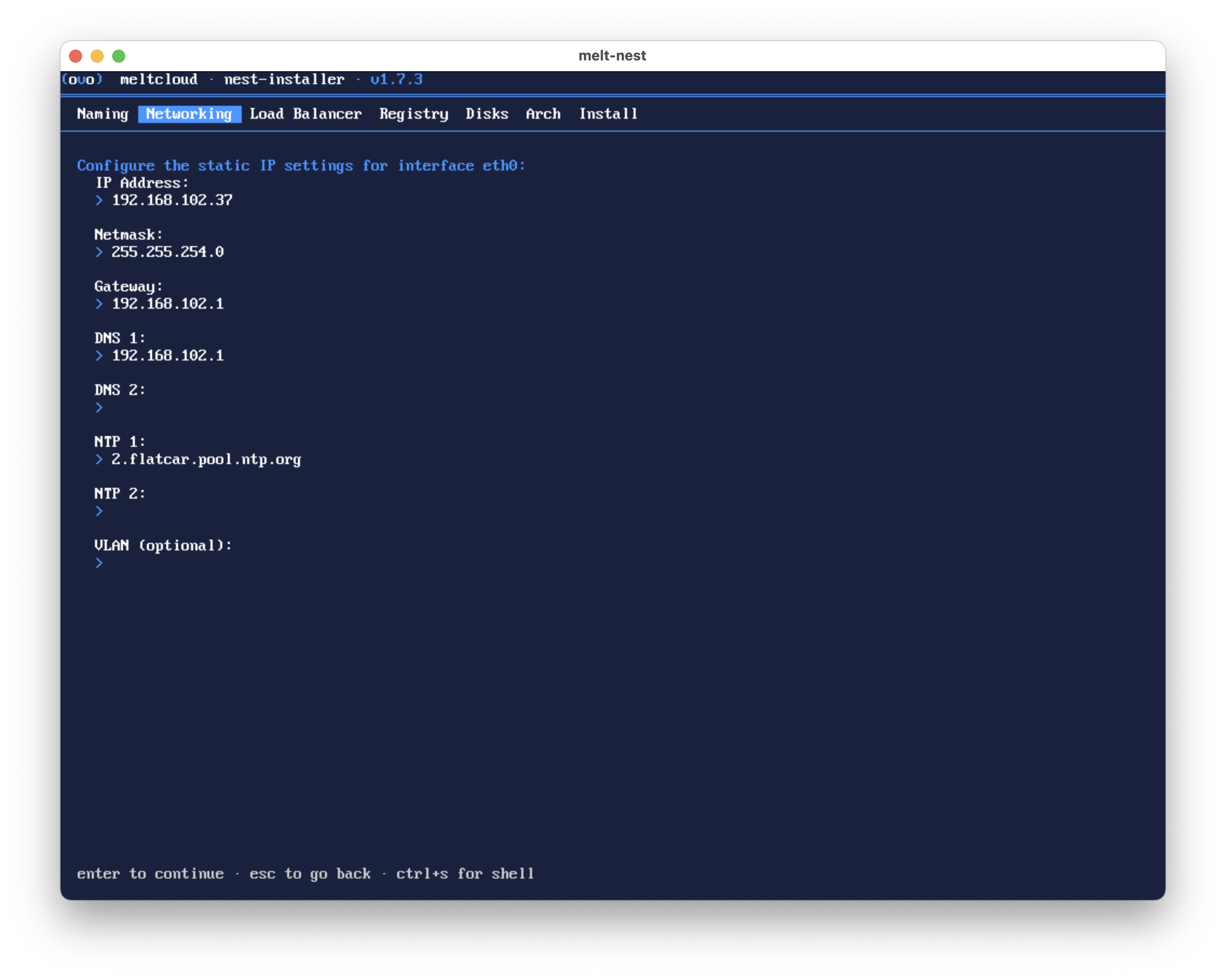

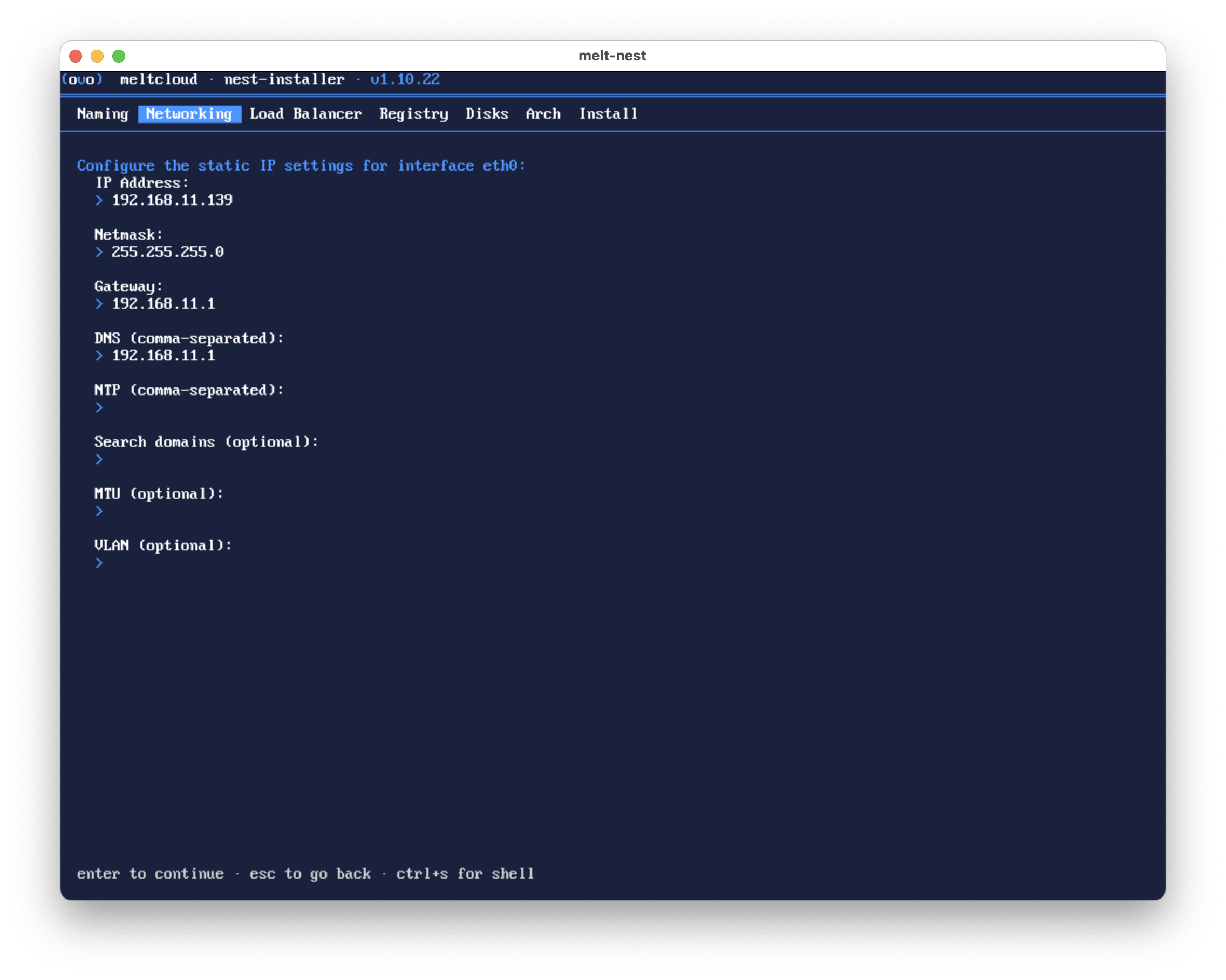

Static IP Configuration

If static networking is selected, configure the network manually after choosing an interface.

Property	Description	Default	Required
IP Address	IPv4 address for the Nest host	Current interface IP	Yes
Netmask	Subnet mask	Detected from interface	Yes
Gateway	Default gateway	Detected from routing table	Yes
DNS 1	Primary DNS server	Detected from system	Yes
DNS 2	Secondary DNS server		No
NTP 1	Primary NTP server	Detected from system	Yes
NTP 2	Secondary NTP server		No
VLAN	VLAN ID (1-4094) for tagged interface		No

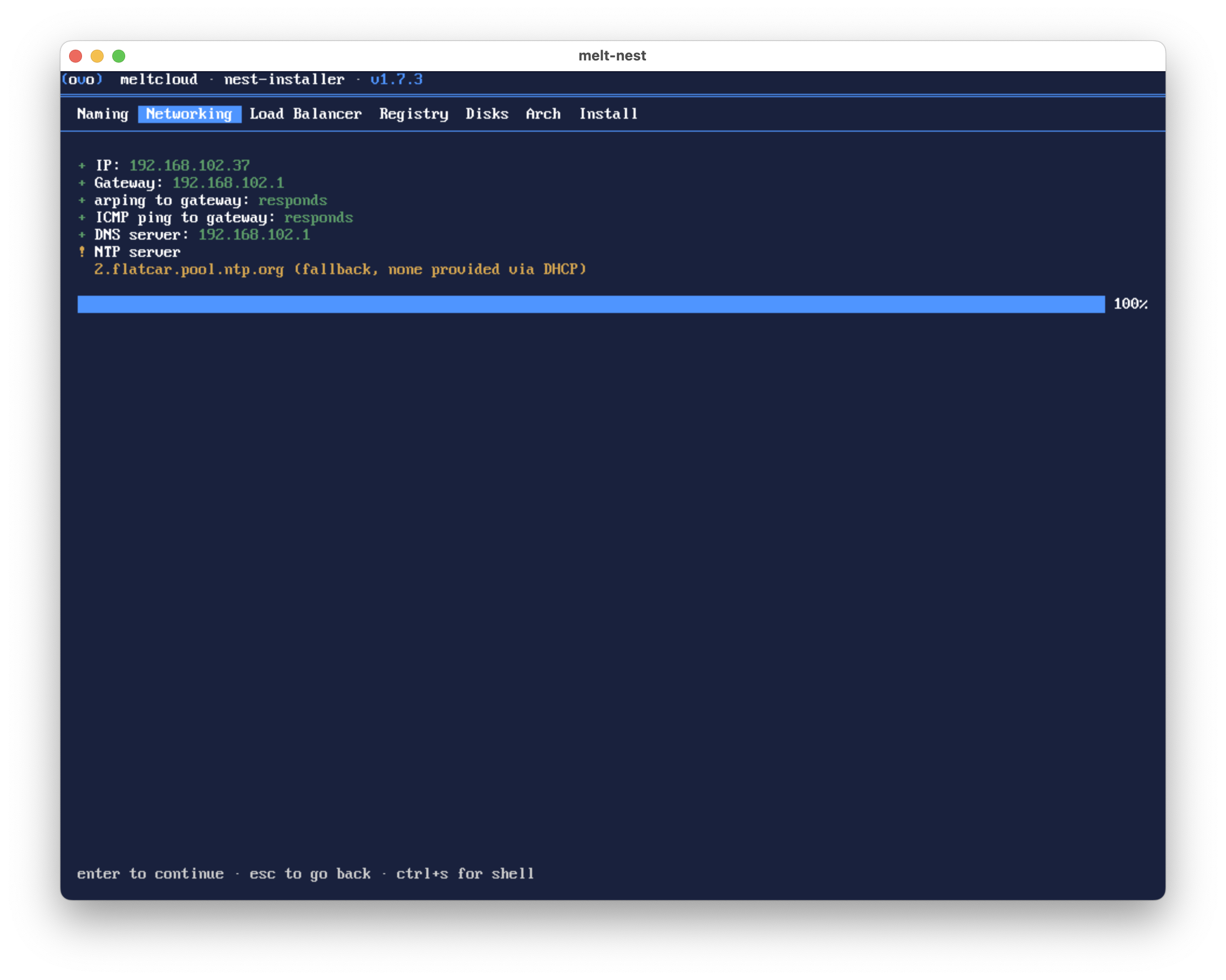

Network Validation

The installer validates network connectivity:

• IP address is configured on the interface
• Gateway is reachable (ARP and ICMP)
• DNS server is configured
• NTP server is accessible

TIP

Many environments do not distribute NTP via DHCP, so the validation may show a warning with a fallback NTP server that might not be reachable. This is fine for trials, but for production, configure a reachable NTP server using static networking.

TIP

Some environments (e.g. Hyper-V) do not respond to ICMP pings on the primary gateway. If the ICMP ping check shows a warning but ARP succeeds, this can be safely ignored.

3. Load Balancer

Configure the load balancer VIPs and domain for the Nest services.

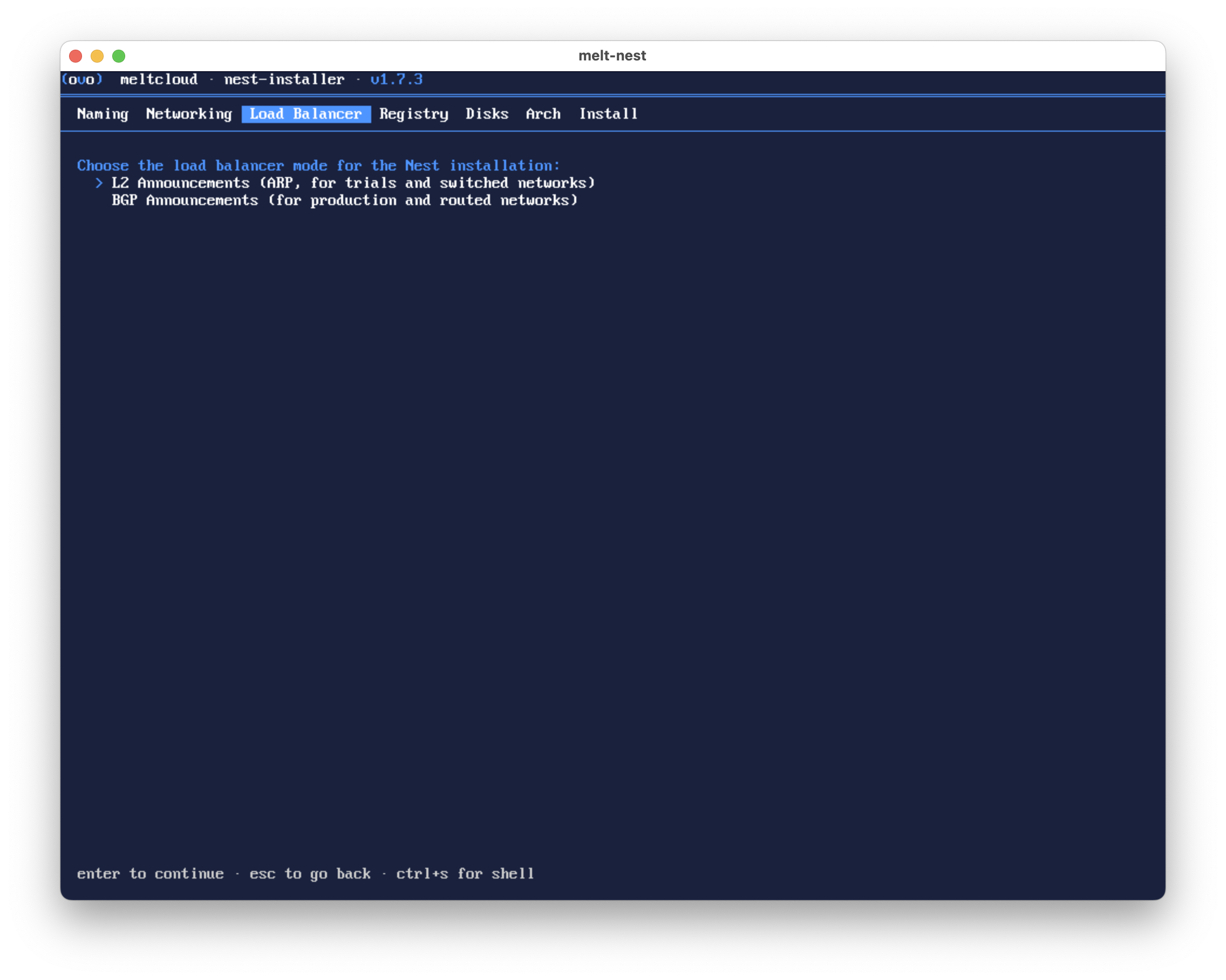

Announcement Mode

Option	Description
L2 Announcements	Uses ARP announcements. For trials and switched networks.

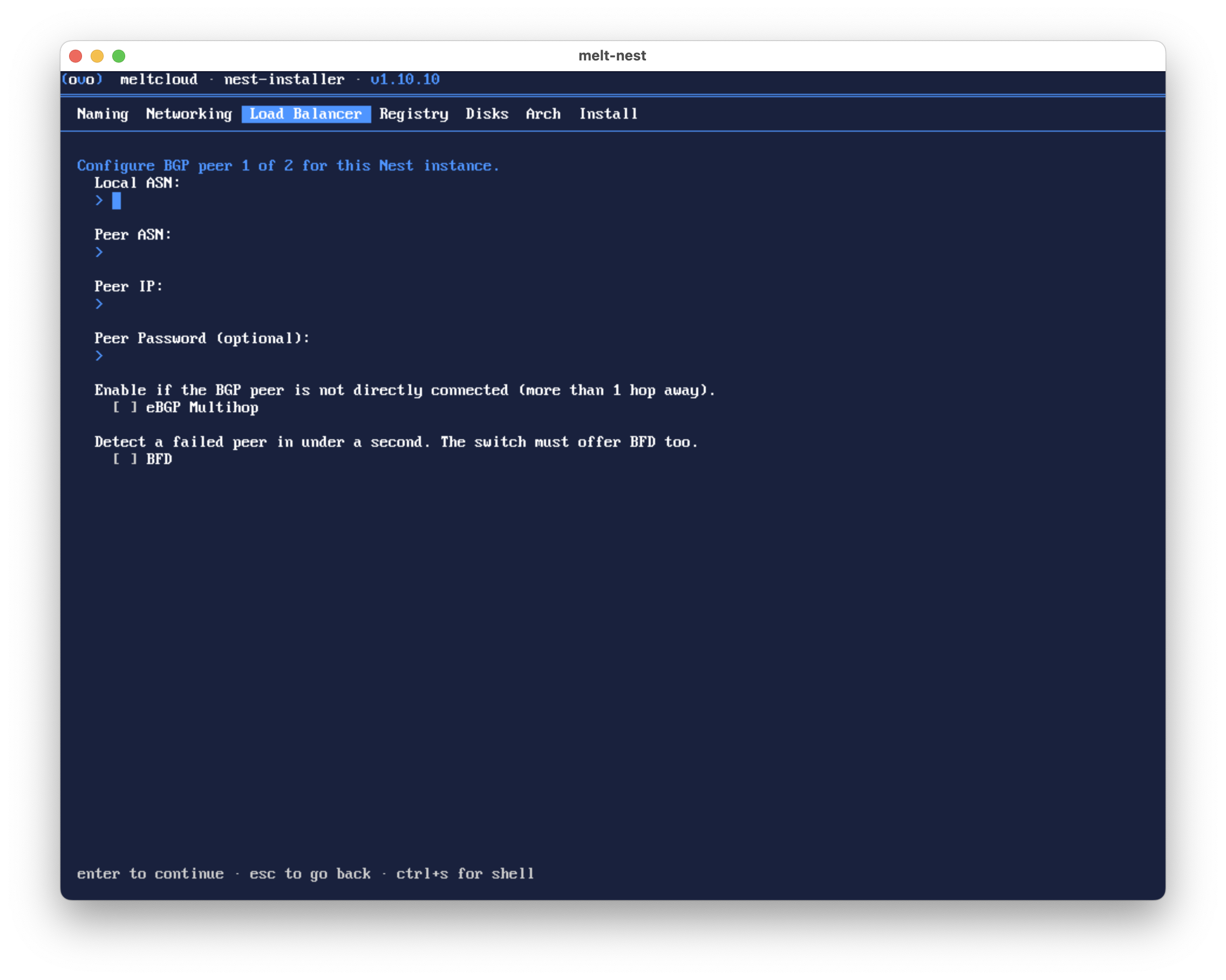

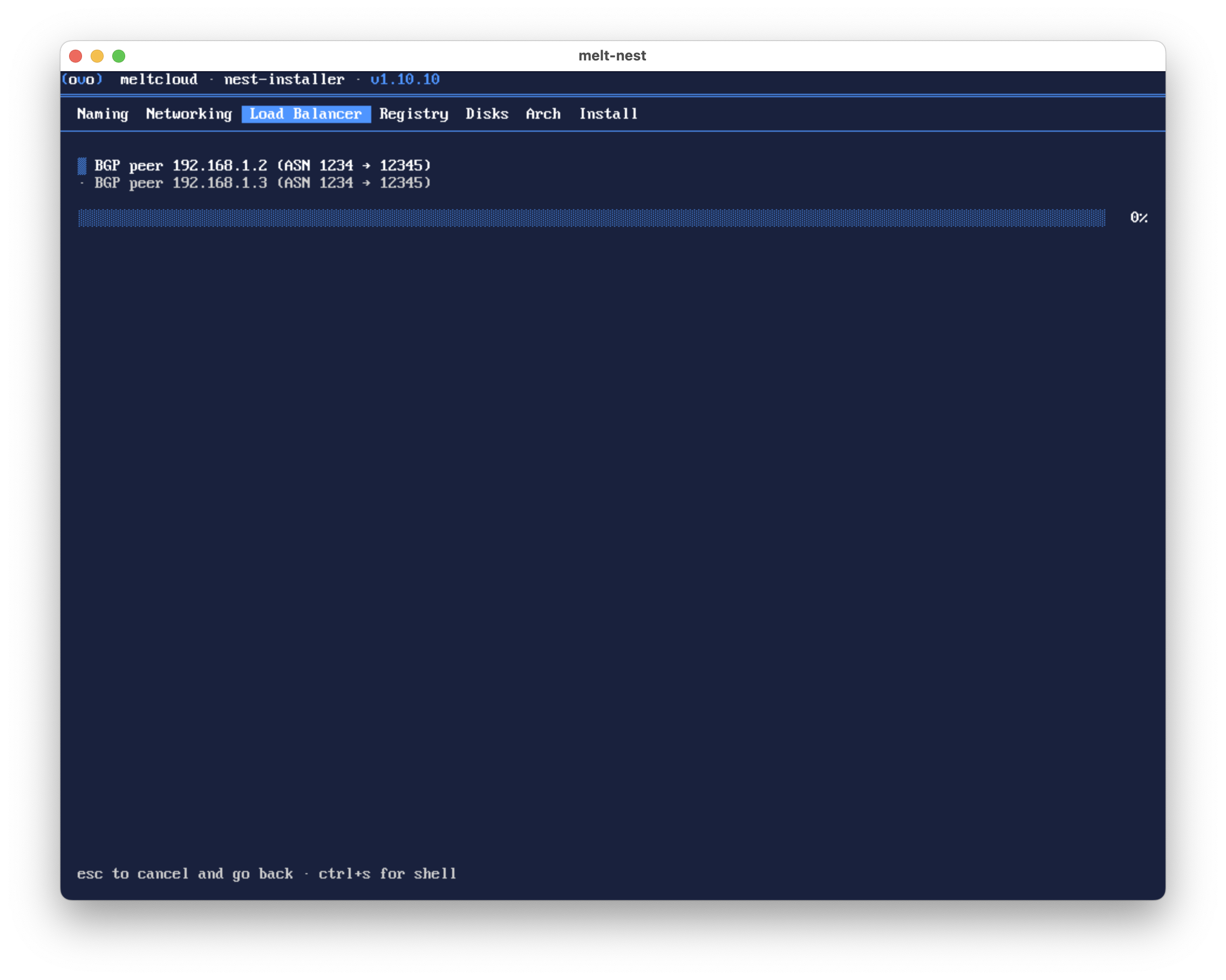

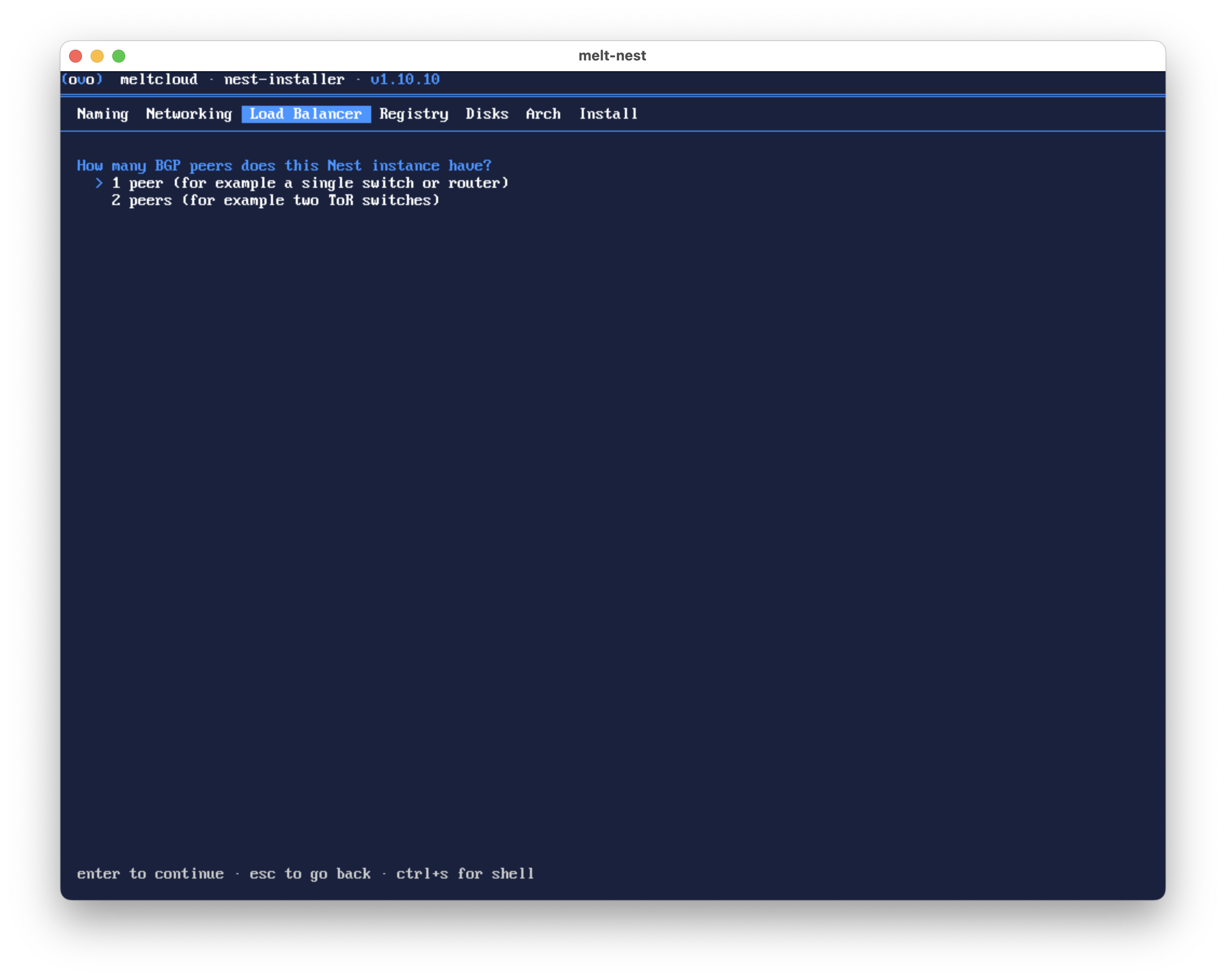

BGP Announcements	For production and routed networks. Only available in headless (unattended) install mode.

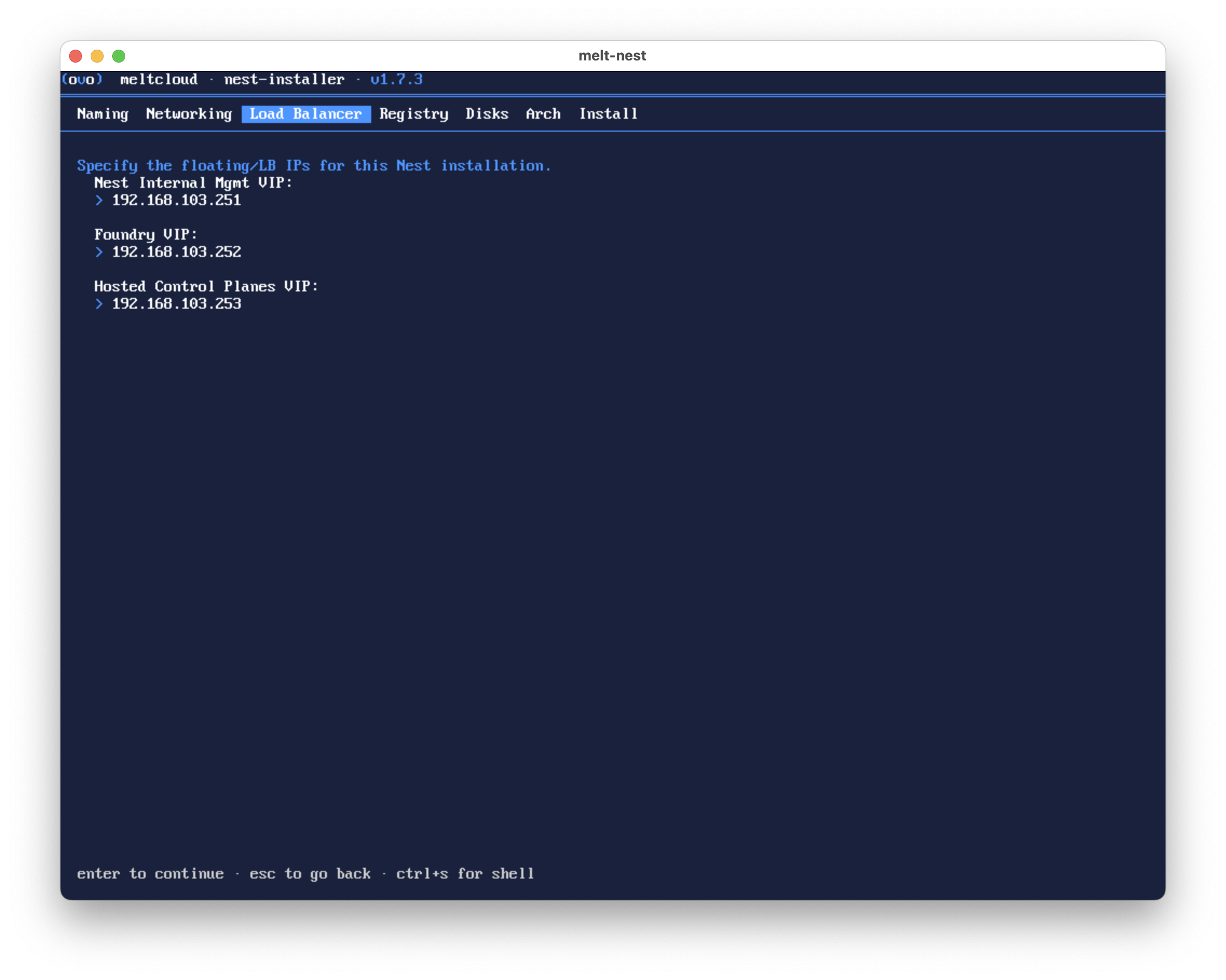

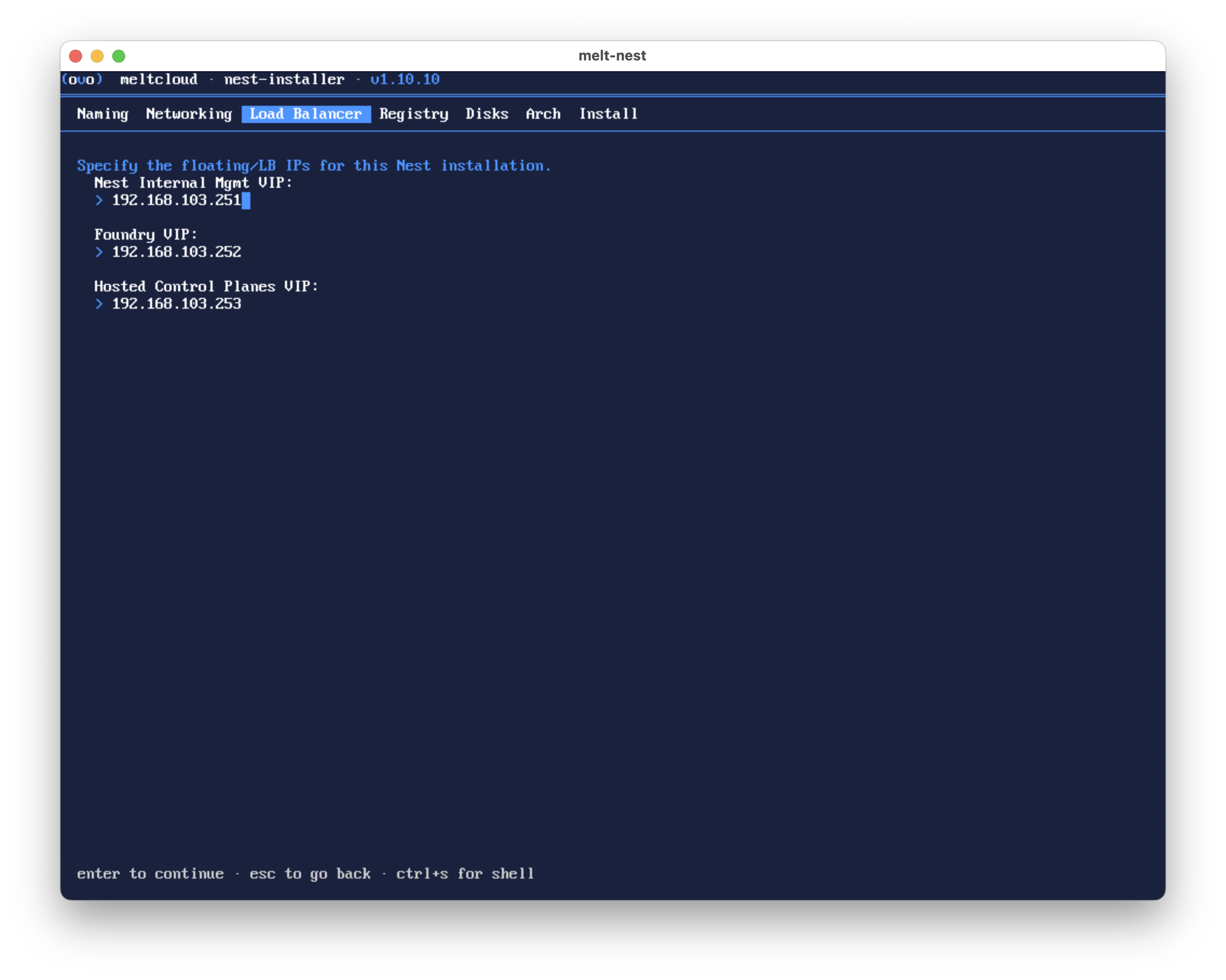

VIP Addresses

Three dedicated IP addresses are required for the Nest services. These must be free (not in use) in your network.

Property	Description	Default	Required
Nest Internal Mgmt VIP	Internal management traffic	Auto-calculated from host subnet	Yes
Foundry VIP	Web UI, API and agent connectivity	Auto-calculated from host subnet	Yes
Hosted Control Planes VIP	Kubernetes API endpoints for hosted clusters	Auto-calculated from host subnet	Yes

TIP

The installer suggests IPs near the top of your subnet (e.g. .251, .252, .253 for a /24). Make sure these are not assigned by DHCP or used by other hosts.

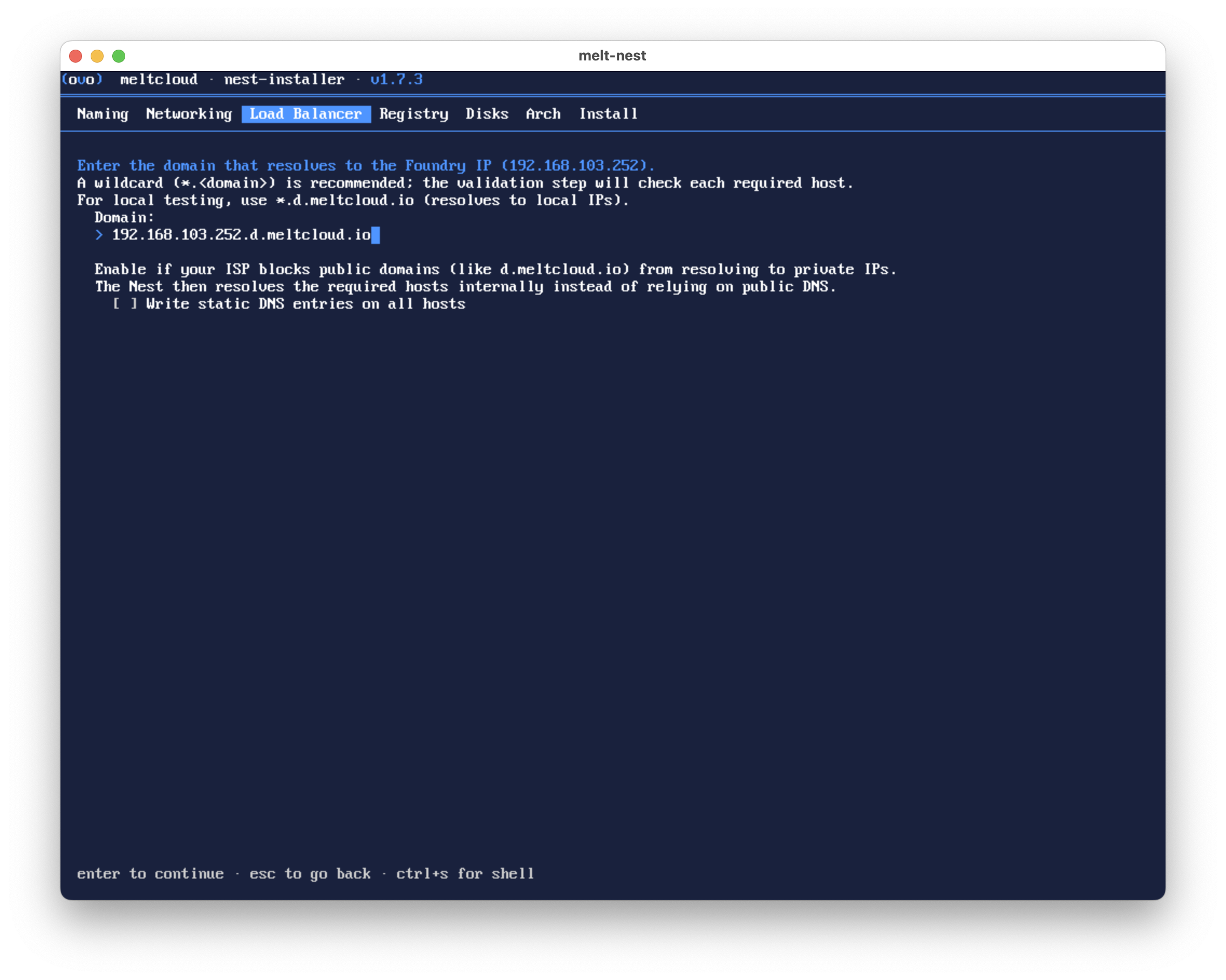

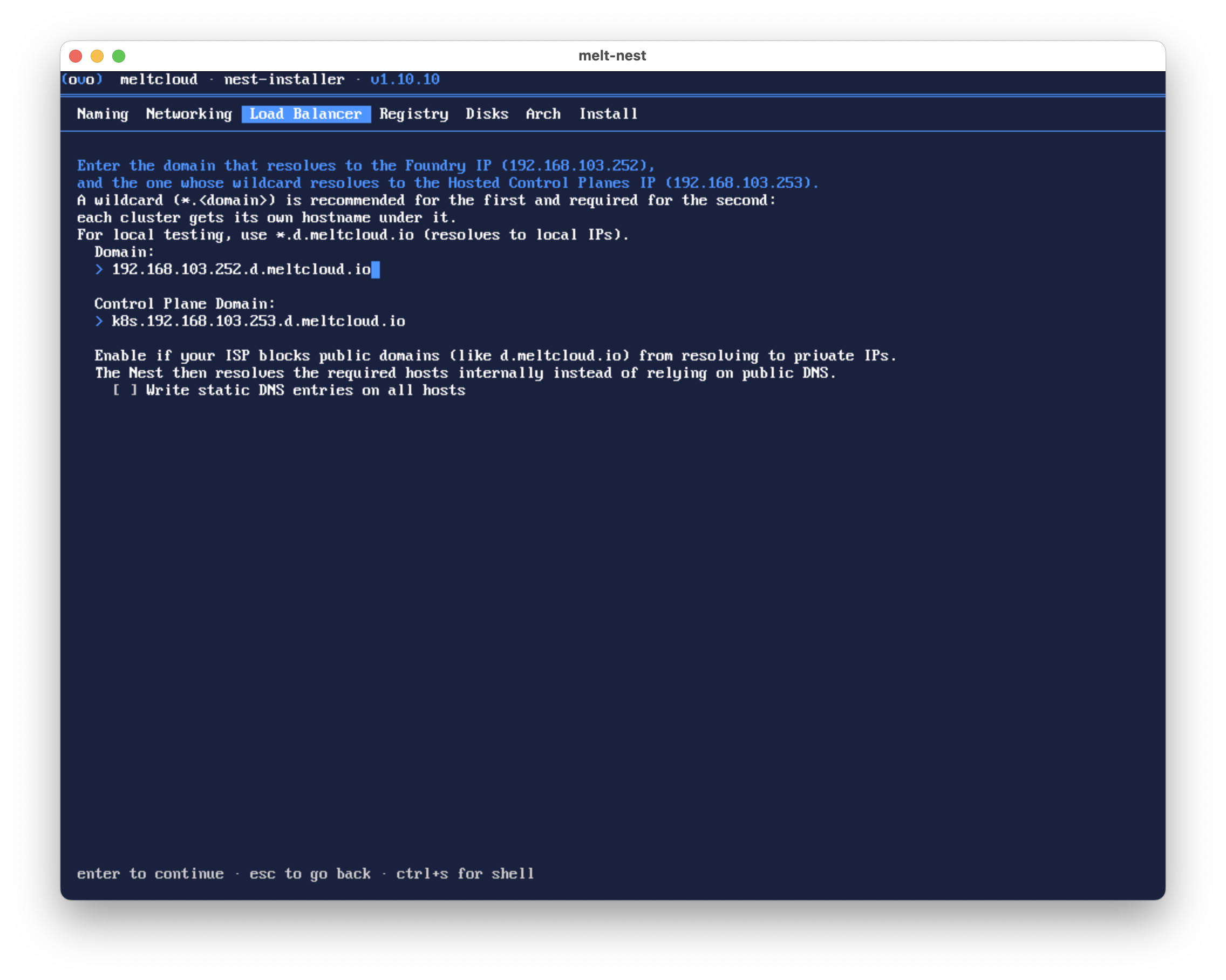

Foundry Domain

The domain that resolves to the Foundry VIP. A wildcard domain is recommended.

Property	Description	Default	Required
Domain	Domain resolving to the Foundry VIP	{foundry_vip}.d.meltcloud.io	Yes

The following subdomains must resolve to the Foundry VIP:

• app.{domain}
• agent.{domain}
• pkg.{domain}
• pkg-push.{domain}
• minio.{domain}
• minio-api.{domain}

TIP

For local testing, use *.d.meltcloud.io which resolves to local IPs.

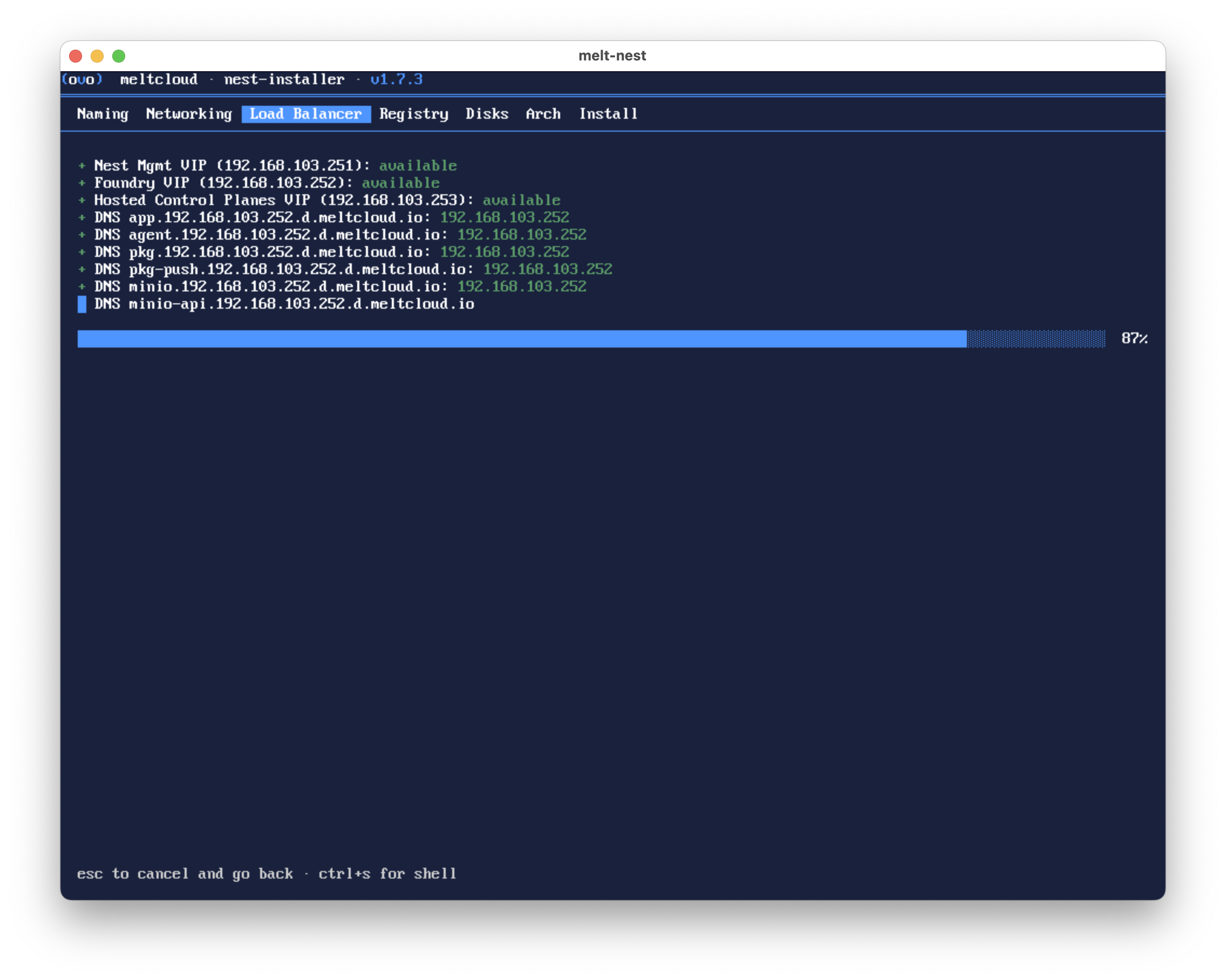

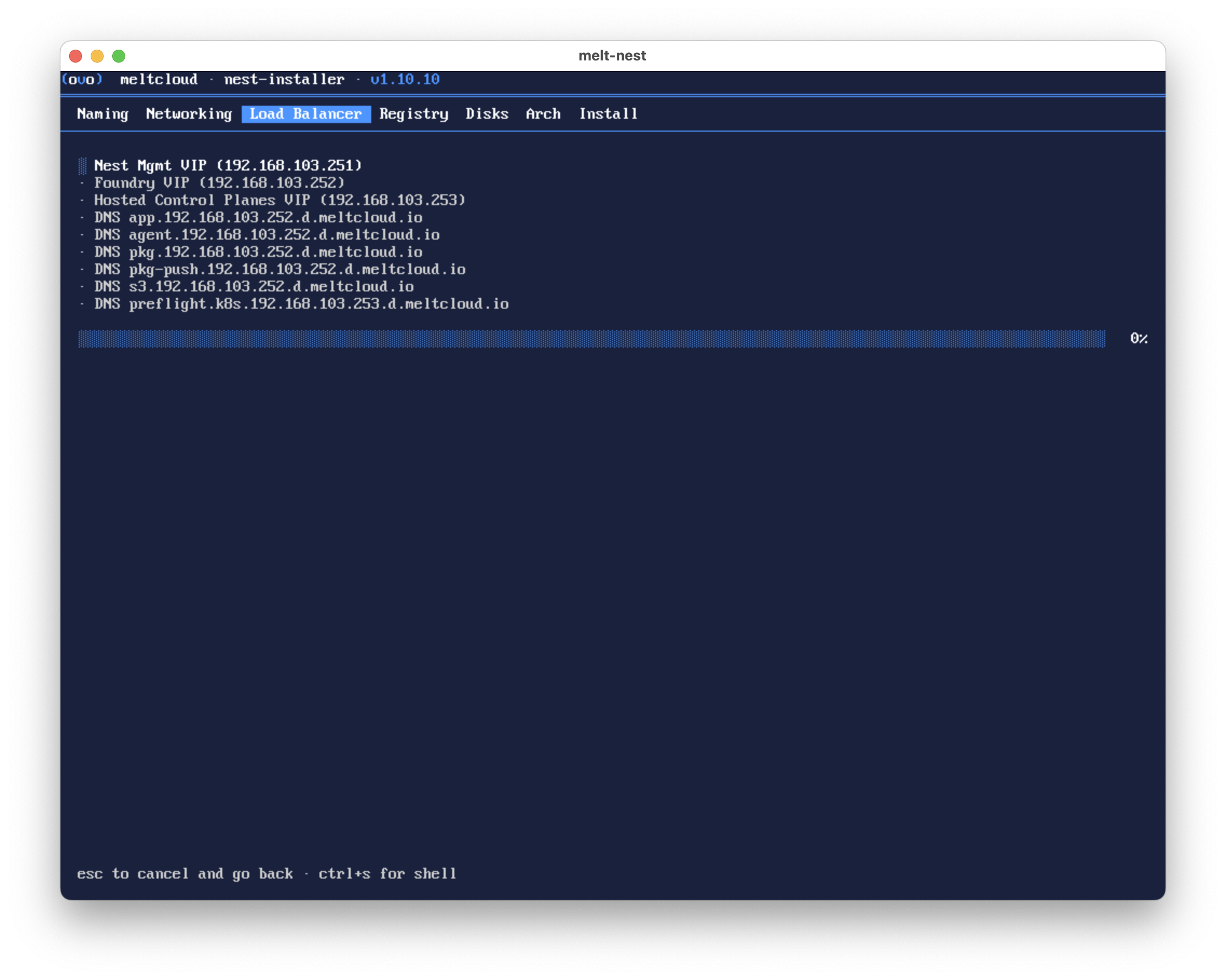

Load Balancer Validation

The installer validates:

• Each VIP is not already in use (via ARP probes)
• All required subdomains resolve to the Foundry VIP

4. Registry

Configure the container registry that Nest will use to pull images.

TIP

The credentials for artifacts.meltcloud.io are already baked into the installer ISO. You only need to change the registry settings for airgapped installations using your own registry.

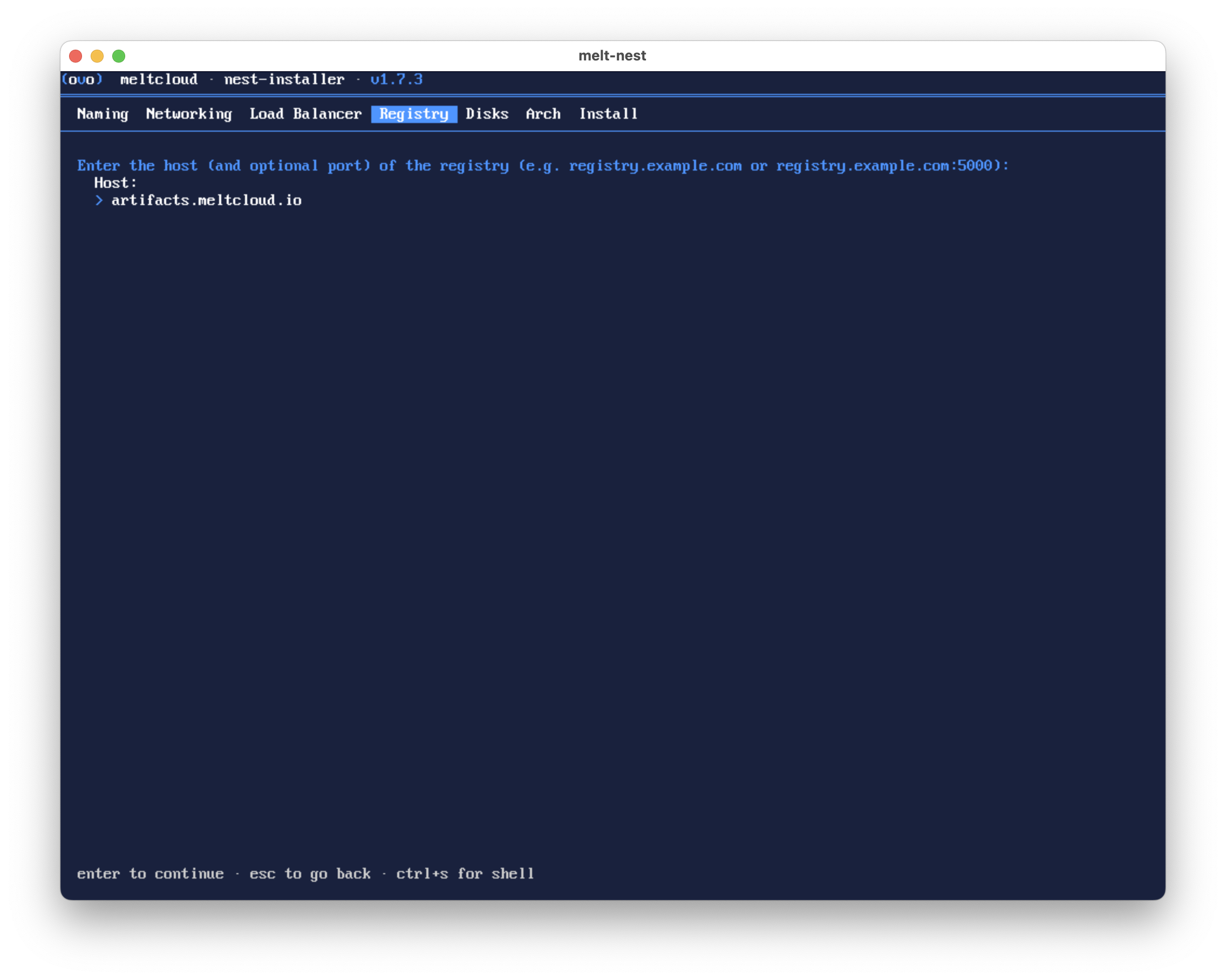

Registry Host

Property	Description	Default	Required
Host	Registry hostname, optionally with port	registry.example.com	Yes

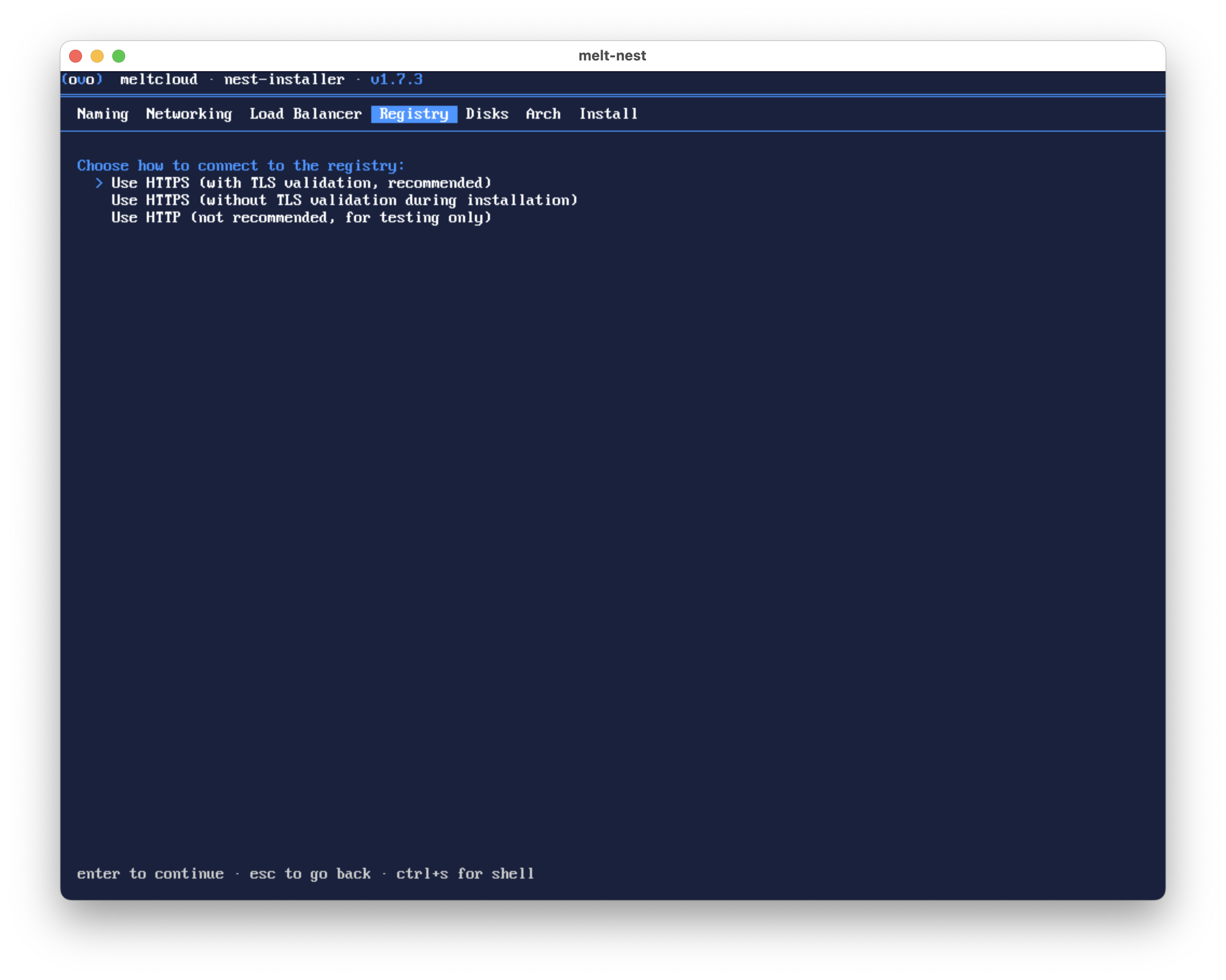

Protocol

Option	Description
HTTPS (with TLS validation)	Recommended for production.
HTTPS (without TLS validation)	For self-signed certificates.
HTTP	Not recommended, for testing only.

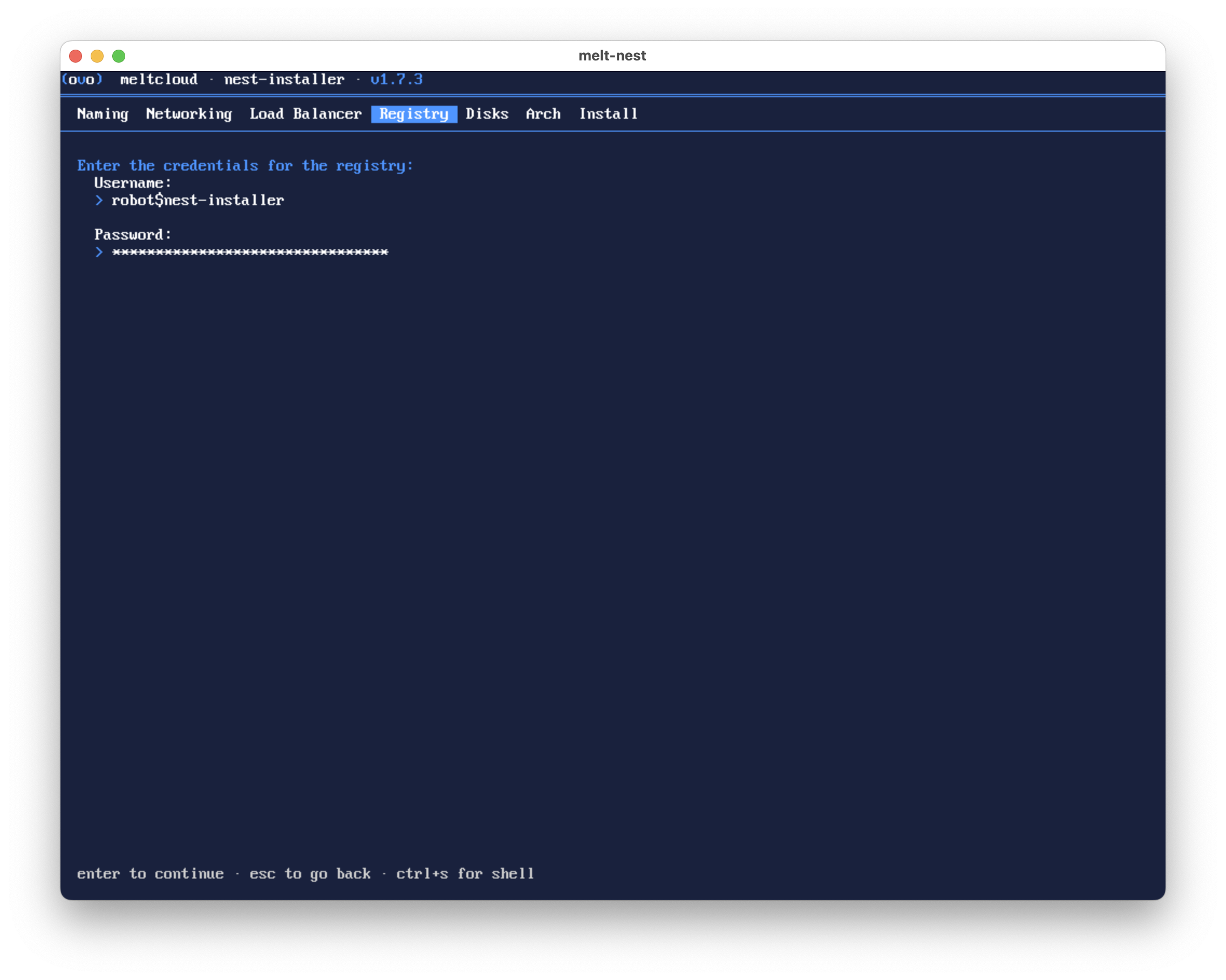

Credentials

Property	Description	Required
Username	Registry username	Yes
Password	Registry password (masked input)	Yes

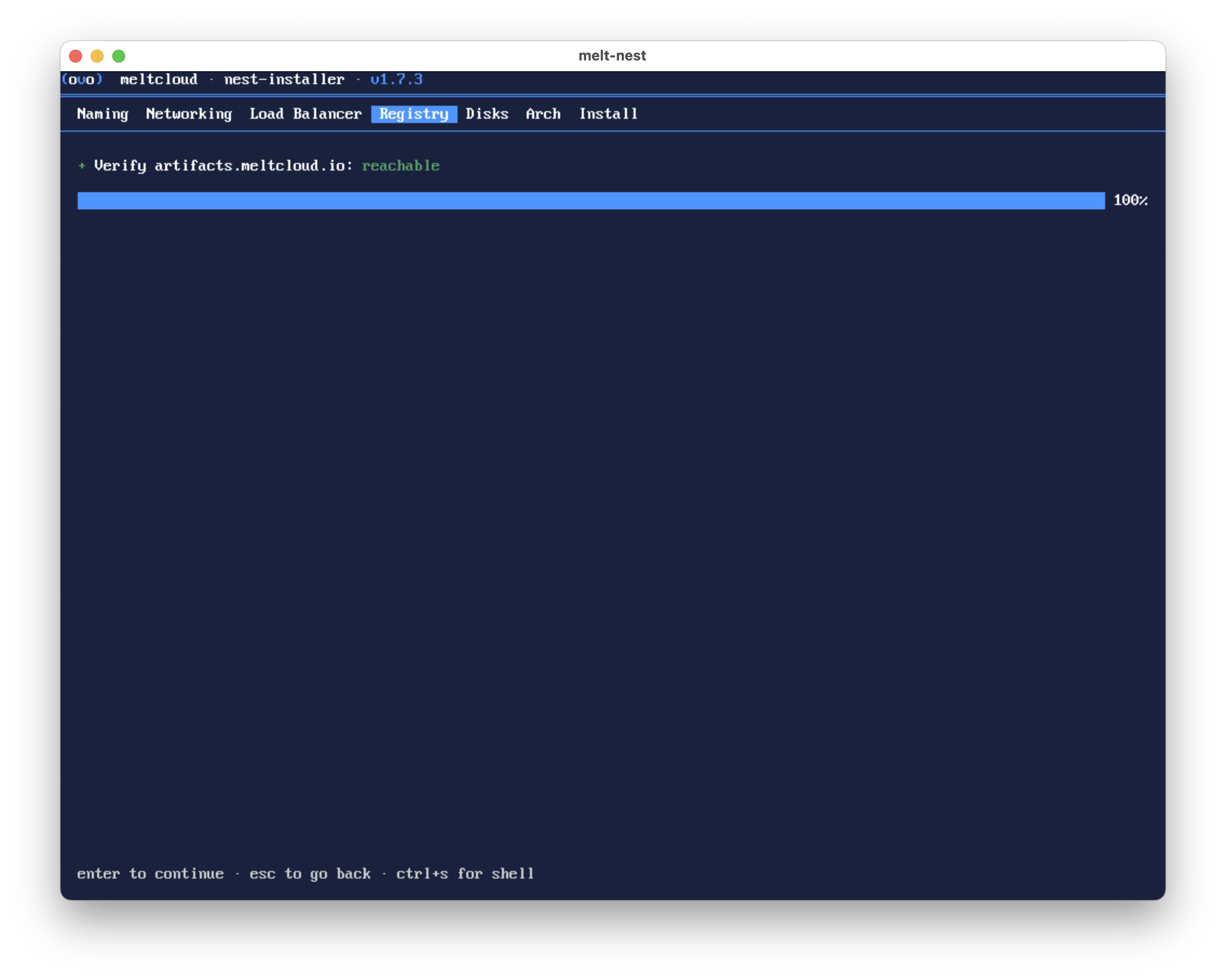

Registry Validation

The installer verifies connectivity and authentication with the configured registry.

5. Disk Setup

Choose the disk to install Nest to.

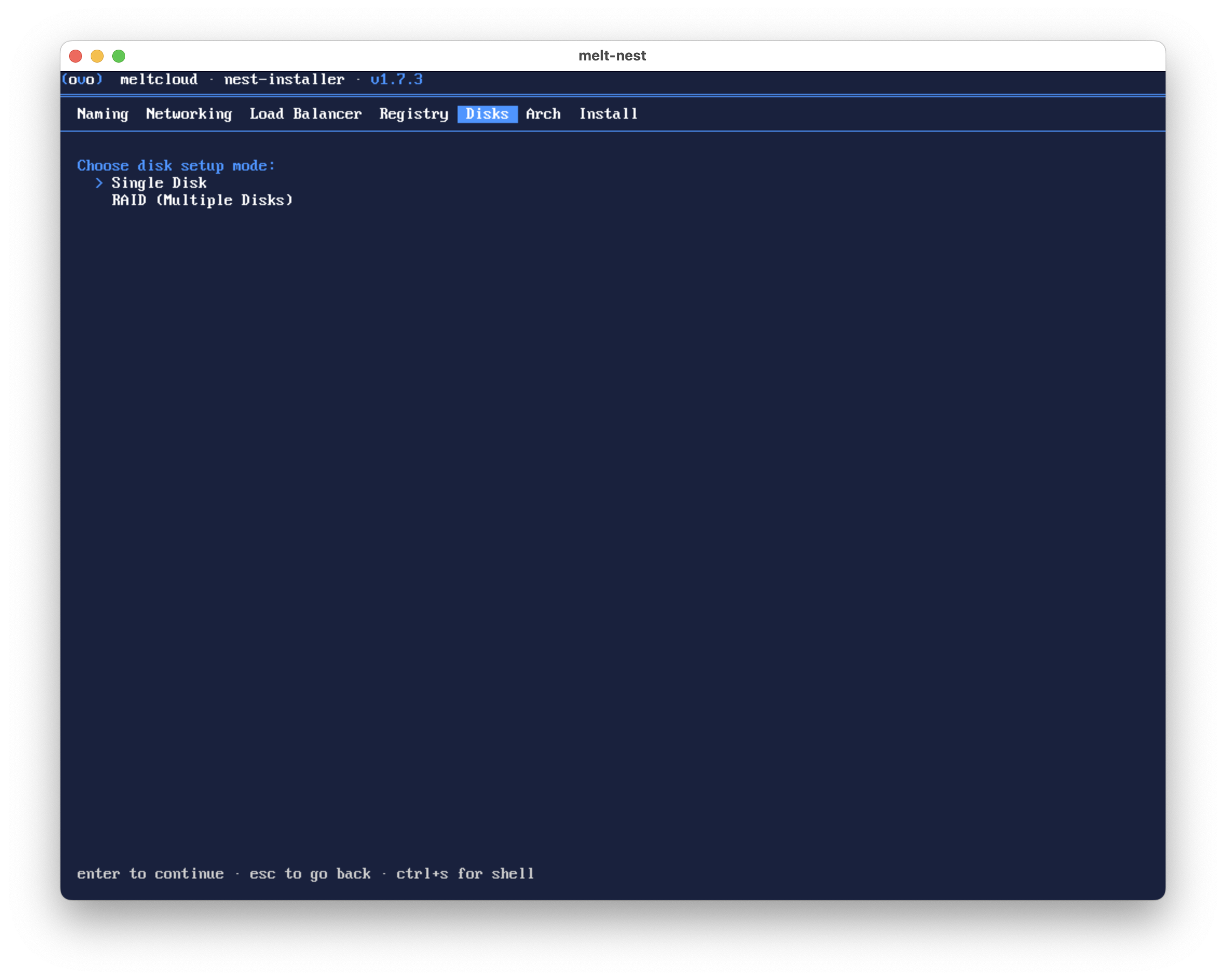

Disk Mode

Option	Description
Single Disk	Install to a single disk.
RAID (Multiple Disks)	Only available in headless (unattended) install mode.

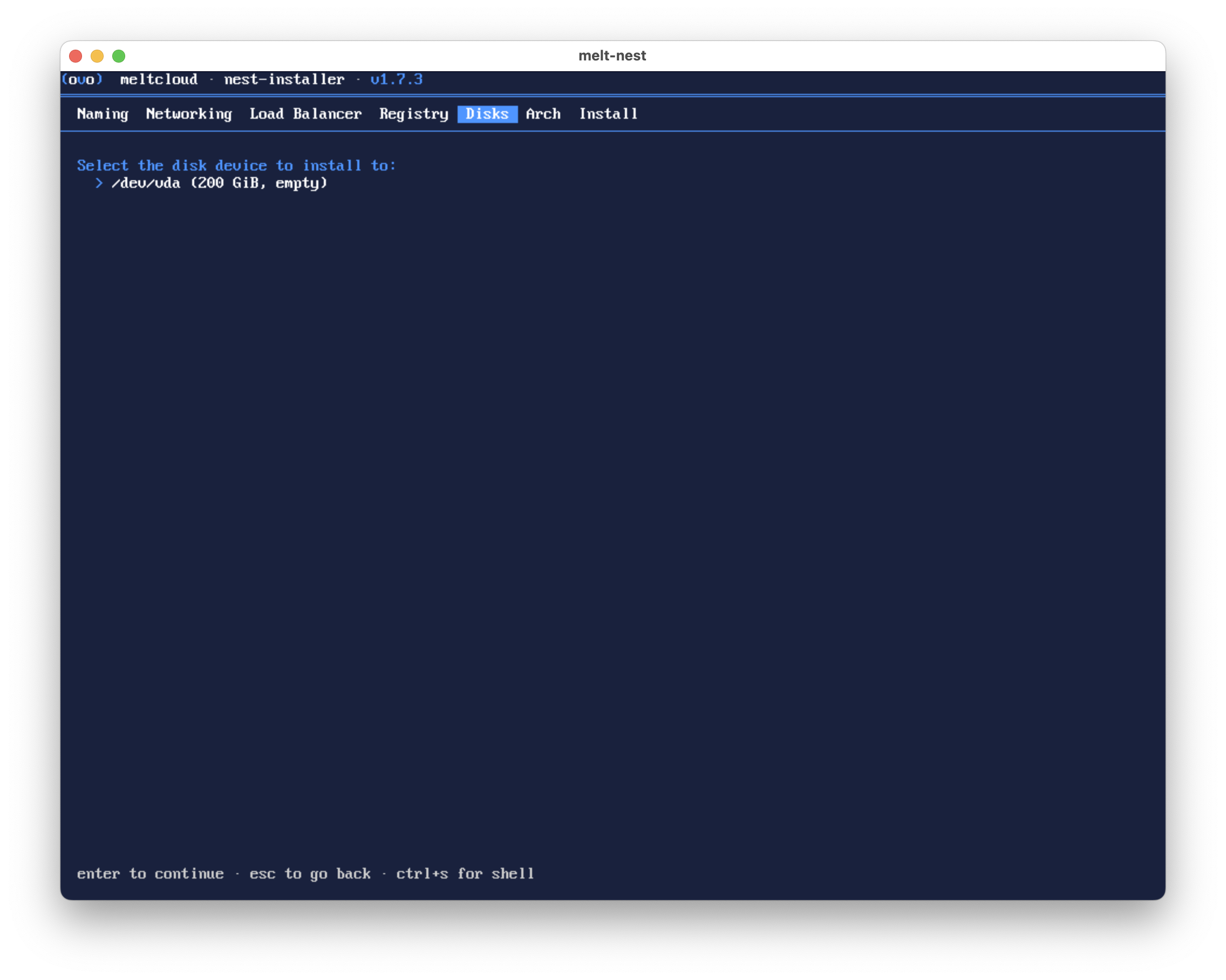

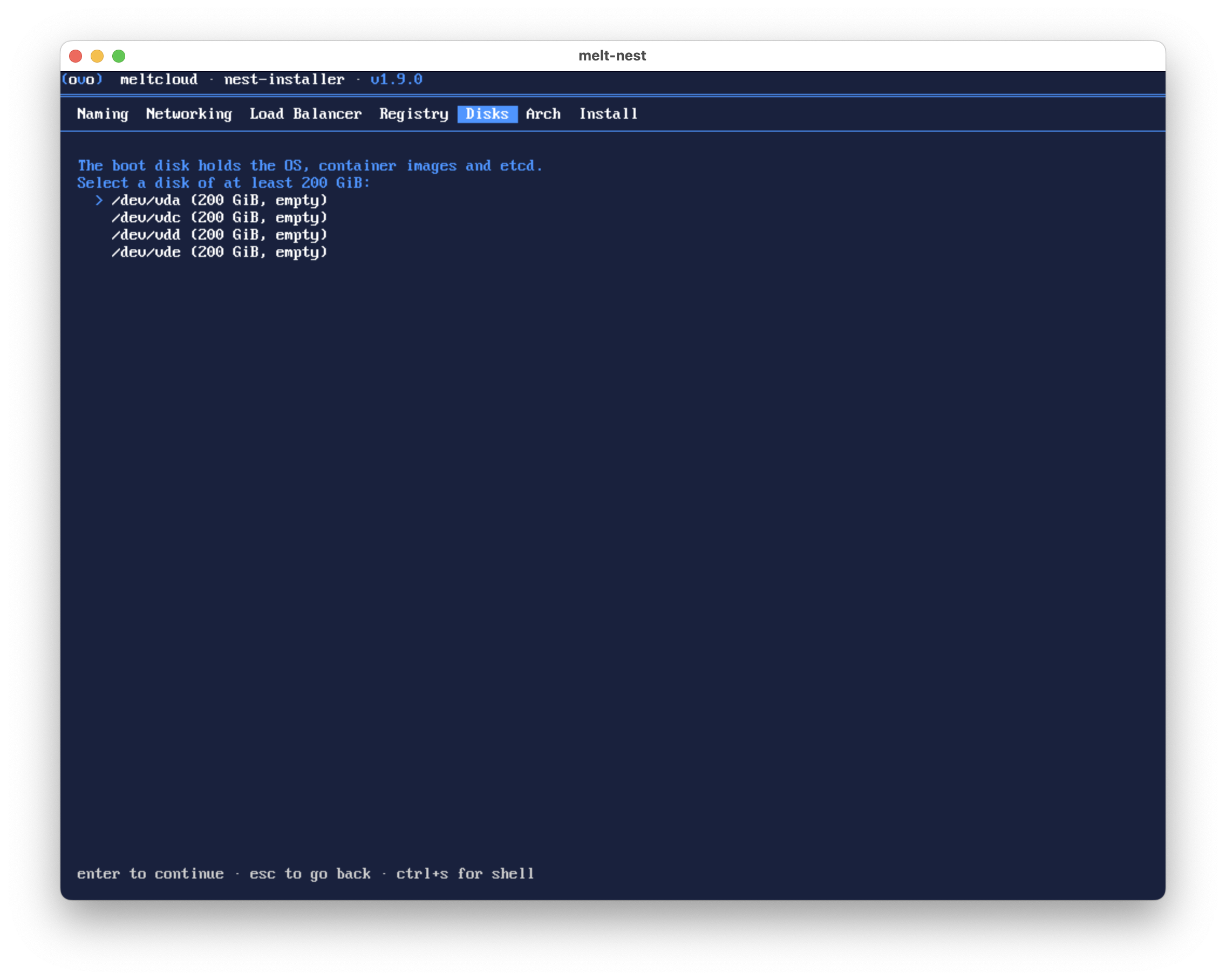

Disk Selection

The installer lists all available block devices with their size and partition status:

Status	Meaning
empty	No partitions found
contains MELT partitions	Previous Nest installation detected
contains unknown partitions	Non-Nest data on disk

WARNING

The installer will wipe the selected disk. All existing data will be lost.

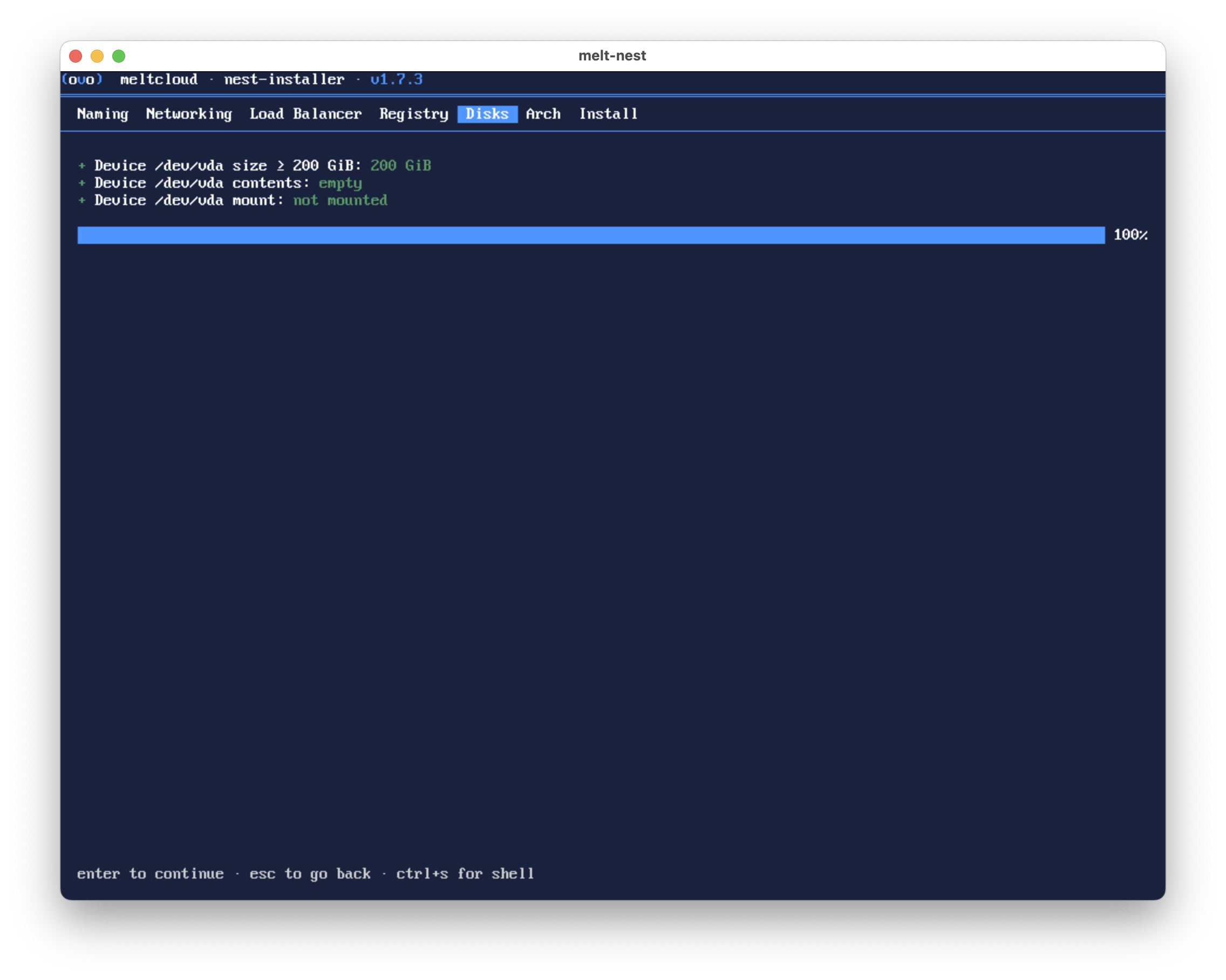

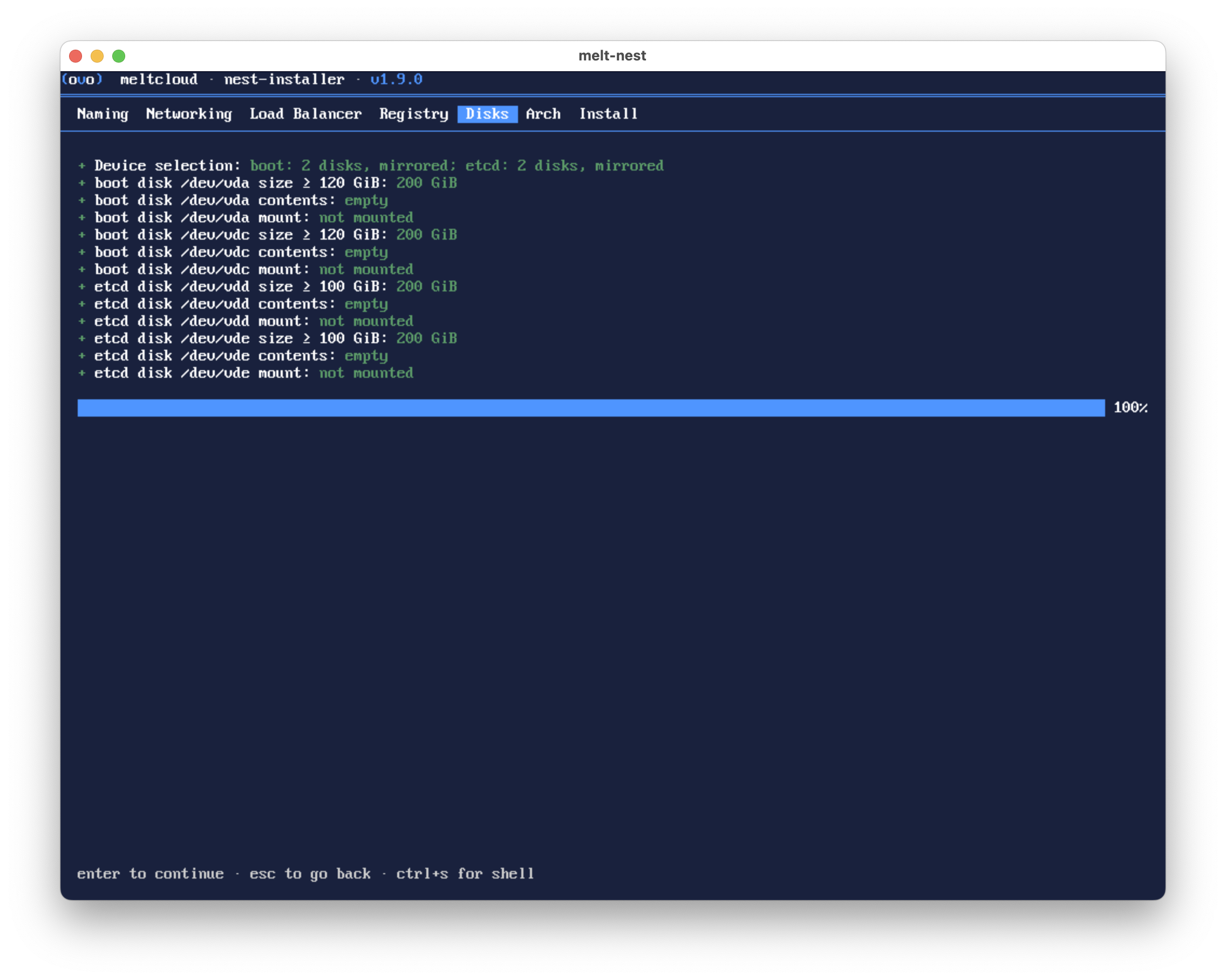

Disk Validation

The installer checks:

• Disk capacity is at least 200 GB
• Disk is not currently mounted (mounted disks will be unmounted if you proceed)

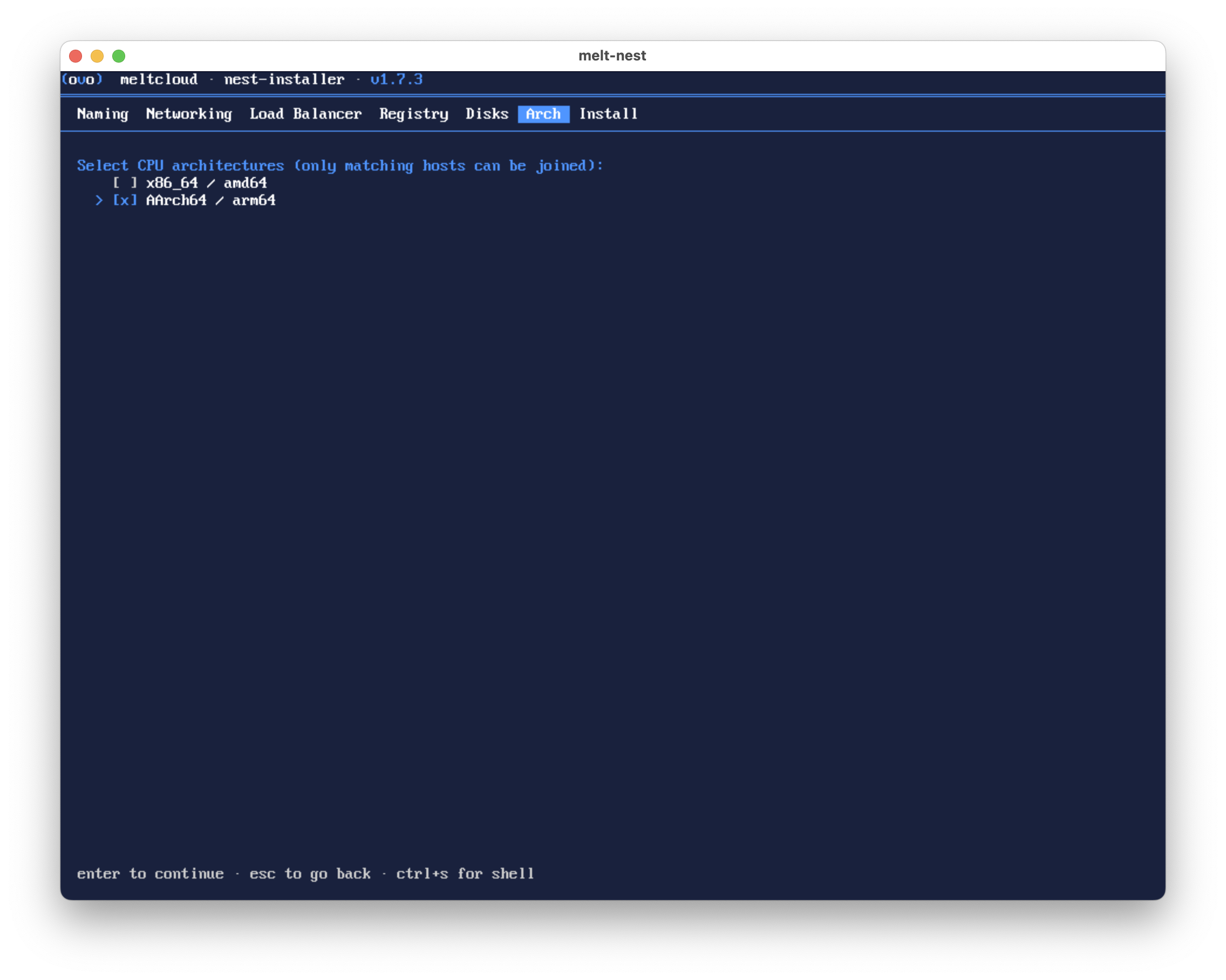

6. Supported Architectures

Select which CPU architectures can enroll as workers to this Nest.

Option	Description
x86_64 / amd64	Intel and AMD processors
AArch64 / arm64	ARM processors (e.g. Apple Silicon, Ampere)

At least one architecture must be selected. The current host architecture is selected by default.

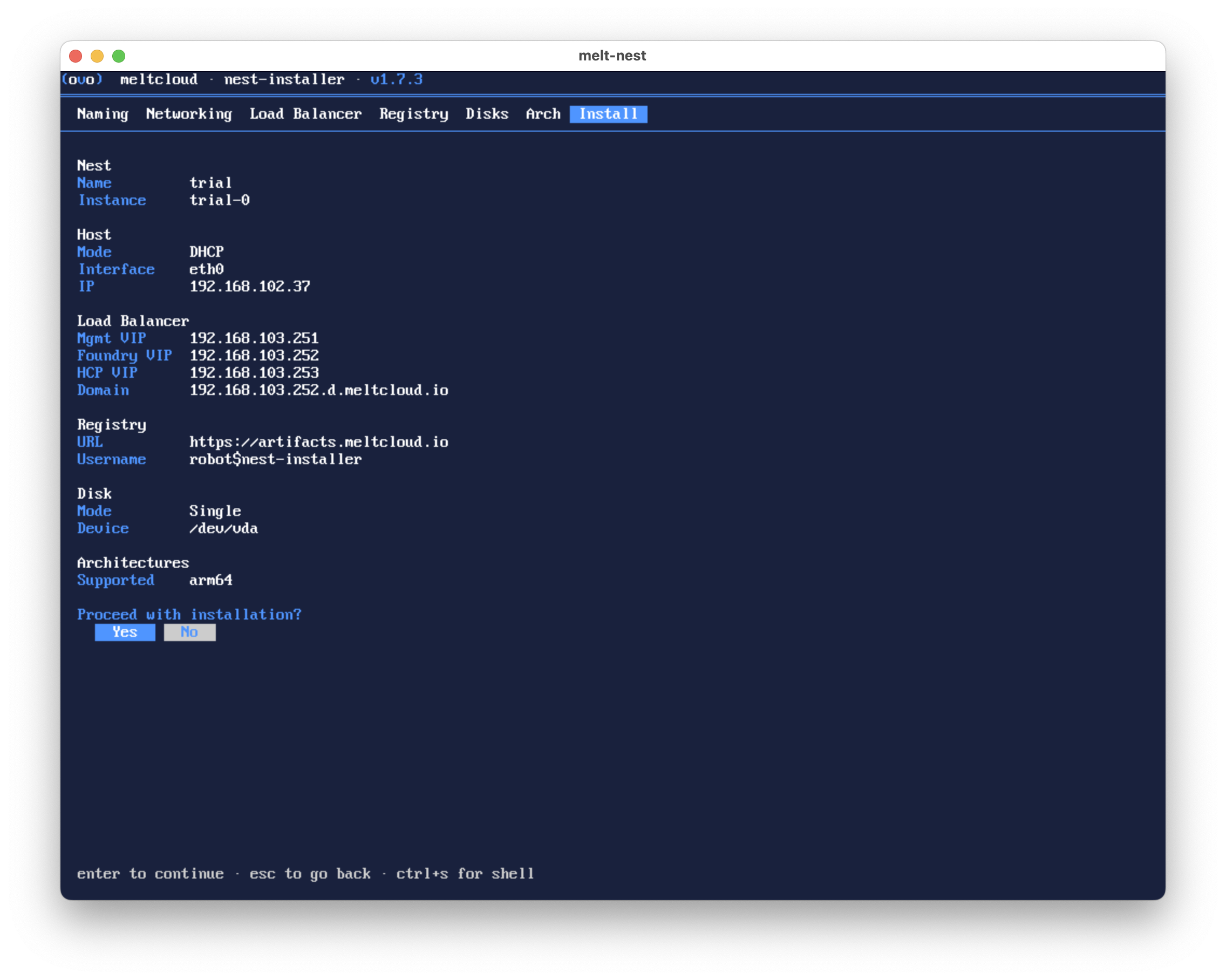

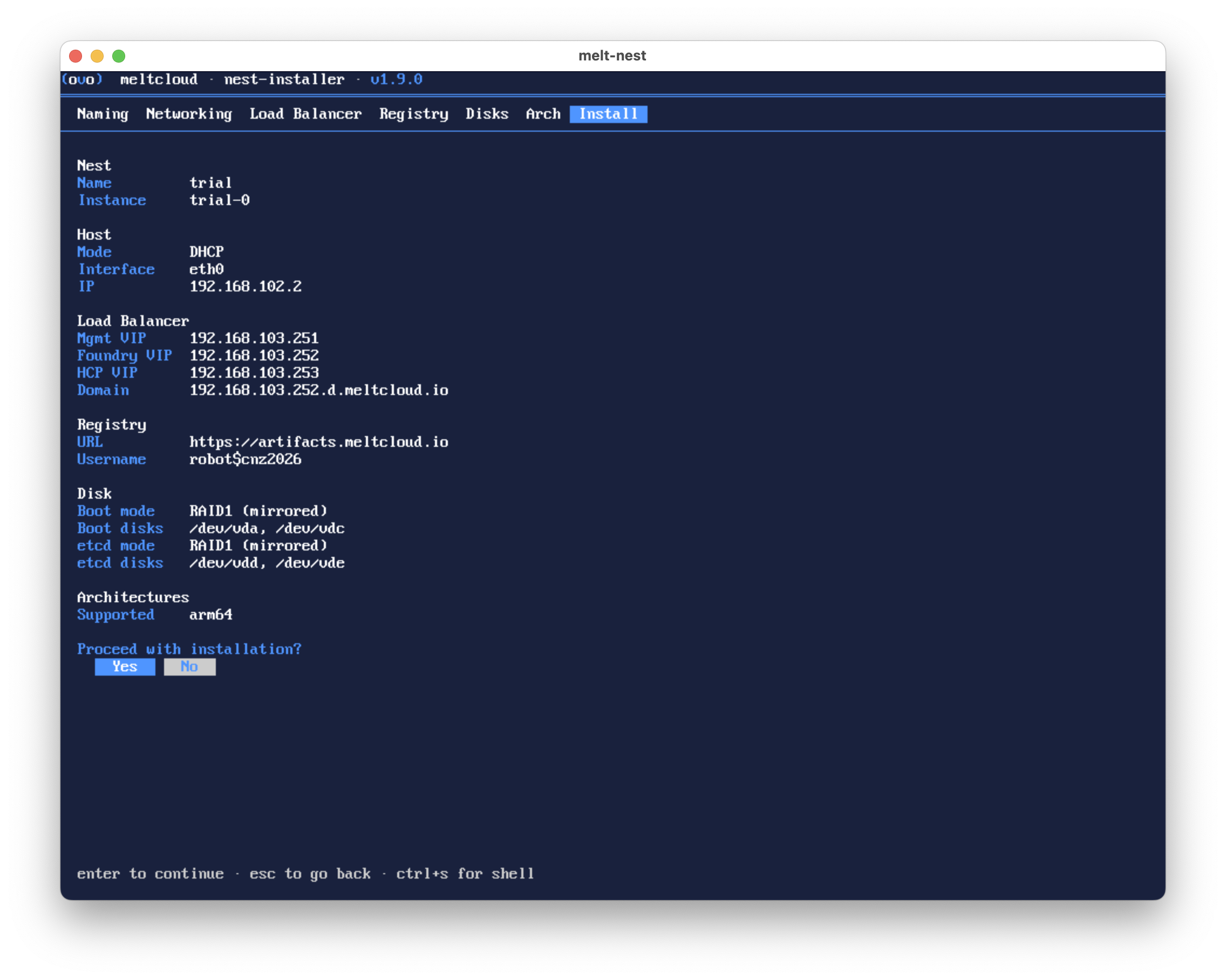

7. Confirm and Install

Review all configuration and confirm to start the installation.

The summary shows all configured values grouped by section (Nest, Host, Load Balancer, Registry, Disk, Architectures).

WARNING

Once the installation starts, it cannot be aborted as disk writes are in progress.

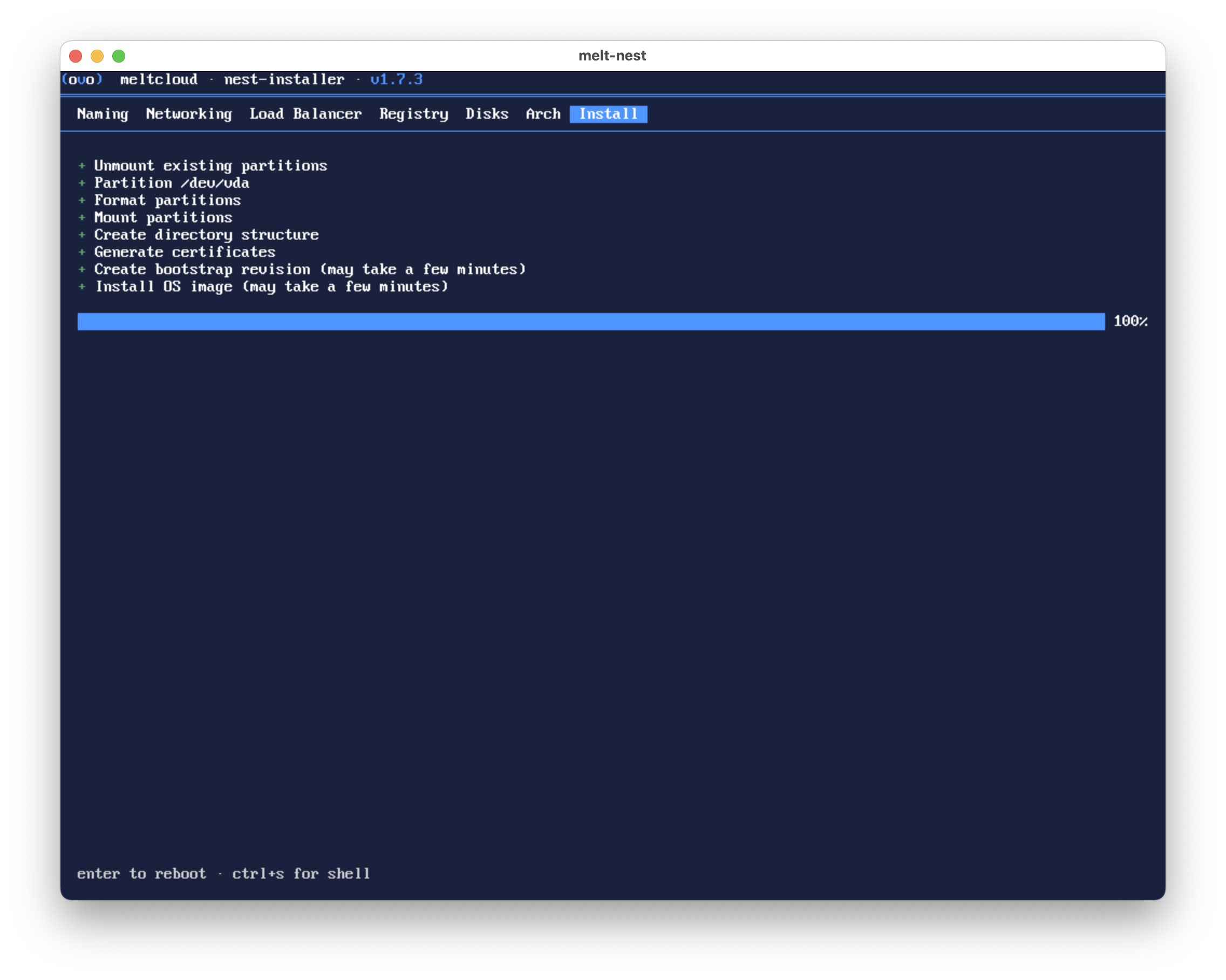

After confirmation, the installer partitions the disk, installs Nest and reboots the machine. After reboot, the Foundry (the web UI and API) is bootstrapped automatically.

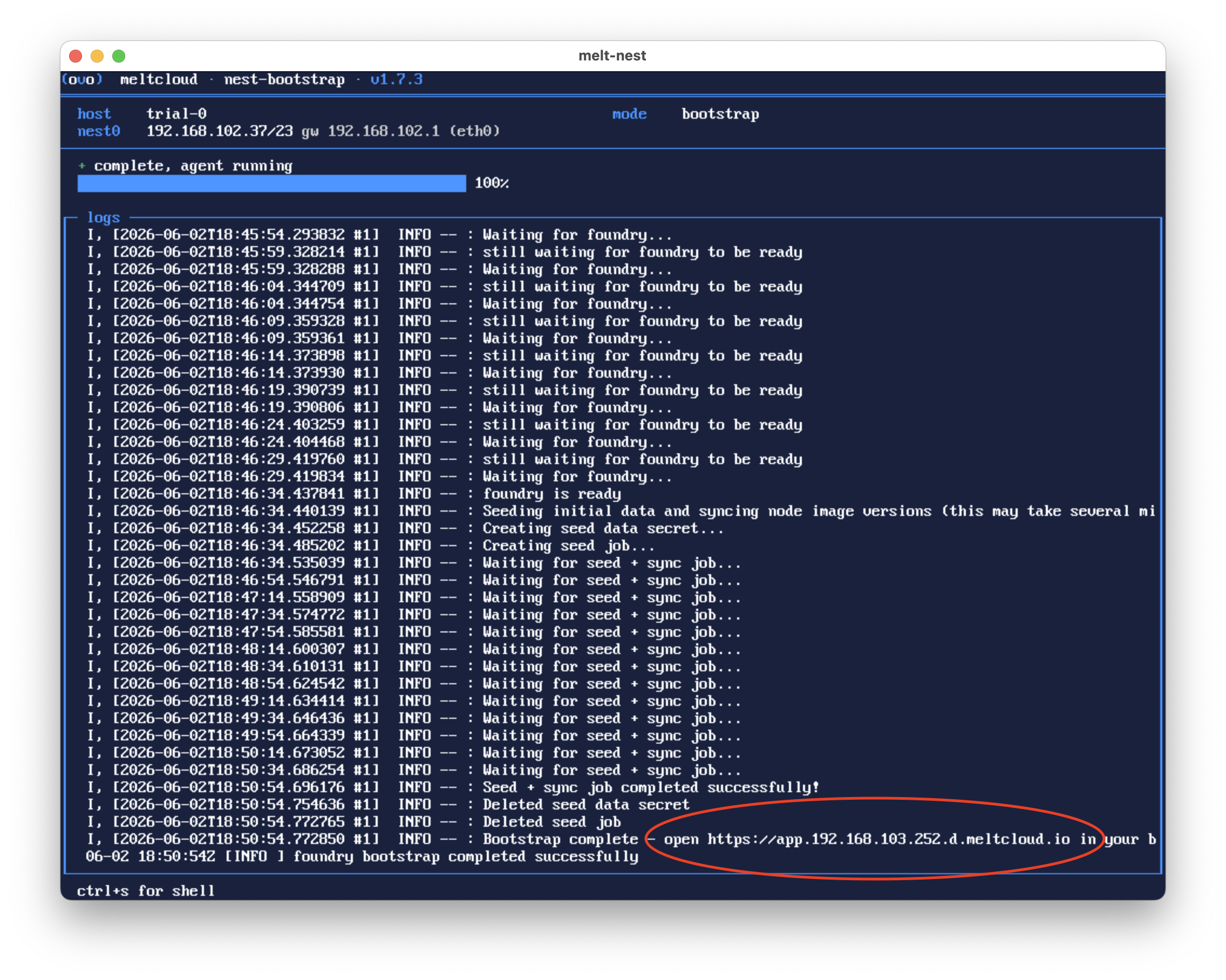

Once bootstrapping is complete, the Foundry URL is printed on screen. Open it in your browser to access the Foundry.

Keyboard Shortcuts

These shortcuts are available throughout the installer:

Shortcut	Action
Ctrl+S	Drop to a console (for debugging)
Ctrl+L	Force terminal repaint
Esc	Go back to the previous step (not available during installation)

Troubleshooting

Console Access

Press Ctrl+S during the installer to drop to a console. Log in with user core and password meltcloud.

To investigate the system state:

# check Nest service logs
journalctl -u nest-*

# check Kubernetes pod status
sudo -i
kubectl get pods -A

Cannot Resolve *.d.meltcloud.io

If you cannot access the Foundry URL in your browser after installation (name lookup fails), your ISP may be blocking d.meltcloud.io because it resolves to private IP addresses. Some ISPs (e.g. Sunrise in Switzerland) do this.

As a workaround, access the Foundry directly via its VIP address (e.g. https://192.168.1.252).

Kubeadm Fails to Reach Its Own IP After Reboot

If the Foundry bootstrap fails after the installer has rebooted because kubeadm cannot reach its own IP, the DHCP server likely assigned a new lease with a different IP address. This is common with Hyper-V.

Restart the installation using static IP settings instead of DHCP.
